Pump Well. Trust Swell111

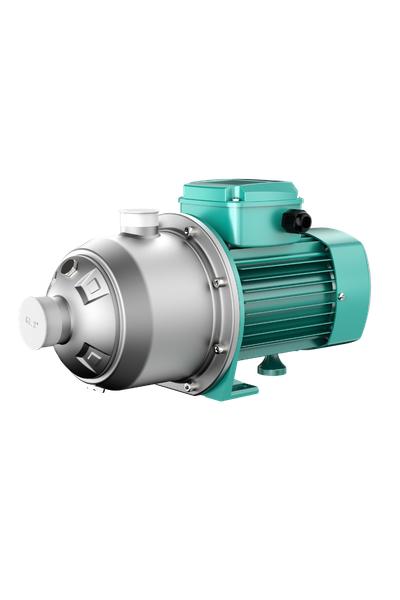

MHI
Horizontal Multistage Pump
HVAC
Livestock farming
Construction sites/factories
Commercial buildings
Domestic Water Supply
MHI stainless steel multistage pump features AISI304 stainless steel structure, wide temperature adaptability and stable high-head performance. It equips with advanced hydraulic model and optimized design enables reduction of internal hydraulic losses, and the increase of 10%-20% operating efficiency, which can effectively save operating costs for users. It is ideal for domestic water boosting, HVAC circulation and light industrial water supply projects.
01
/
03
Working condition
Medium temperature
-15°C ~ +110°C
Ambient temperature
≤40°C
Max working pressure
1.0 MPa
Proetction
IP 55
Pump
- S.S. impellers
- S.S.middle section
- Pure copper motor wire
- Multistage impellers
- Low noise:40~65dB
Motor
Single Phase: 220V/50Hz
Three Phase: 380V/50Hz
Motors of other voltages are available upon request.
Single phase with thermal protector
Insulation Class:F
Product Parameters
| MODEL | POWER | MAX.HEAD (m) | RATED.HEAD (m) | MAX.FLOW (L/min) | RATED.FLOW (L/min) | SPEED rpm | INLET OUTLET |
|
| (kW) | (HP) | |||||||
| MHI-202 | 0.37 | 0.5 | 22 | 20 | 85 | 35 | 2900 | 1"x1" |
| MHI-203 | 0.55 | 0.75 | 33 | 30 | 85 | 35 | 2900 | 1"x1" |
| MHI-204 | 0.55 | 0.75 | 45 | 38 | 85 | 35 | 2900 | 1"x1" |
| MHI-205 | 0.75 | 1 | 54 | 47 | 85 | 35 | 2900 | 1"x1" |
| MHI-206 | 1.1 | 1.5 | 69 | 60 | 85 | 35 | 2900 | 1"x1" |
| MHI-402 | 0.37 | 0.5 | 23 | 18 | 135 | 70 | 2900 | 1.25"x1" |
| MHI-403 | 0.55 | 0.75 | 33 | 27 | 135 | 70 | 2900 | 1.25"x1" |
| MHI-404 | 0.75 | 1 | 42 | 38 | 135 | 70 | 2900 | 1.25"x1" |
| MHI-405 | 1.1 | 1.5 | 57 | 46 | 135 | 70 | 2900 | 1.25"x1" |
| MHI-406 | 1.5 | 2 | 68 | 55 | 135 | 70 | 2900 | 1.25"x1" |
| MHI-802 | 0.75 | 1 | 23 | 17 | 200 | 135 | 2900 | 1.5"x1.25" |
| MHI-803 | 1.1 | 1.5 | 36 | 24 | 200 | 135 | 2900 | 1.5"x1.25" |
| MHI-804 | 1.5 | 2 | 48 | 35 | 200 | 135 | 2900 | 1.5"x1.25" |
| MHI-805 | 1.85 | 2.5 | 59 | 47 | 200 | 135 | 2900 | 1.5"x1.25" |
| MHI-1602 | 1.5 | 2 | 24 | 16 | 435 | 270 | 2900 | 2"x1.5" |
| MHI-1603 | 1.85 | 2.5 | 36 | 27 | 435 | 270 | 2900 | 2"x1.5" |
| MHI-1604 | 2.2 | 3 | 48 | 33 | 435 | 270 | 2900 | 2"x1.5" |
