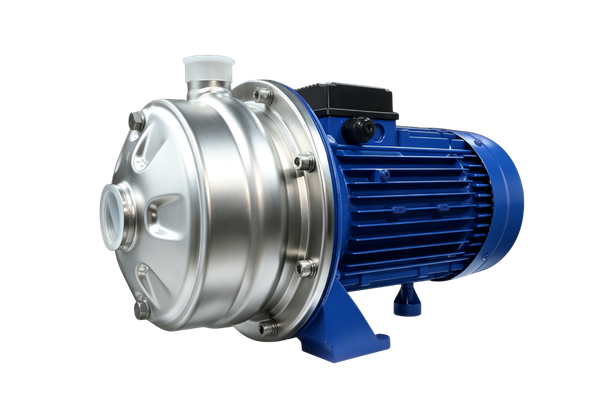

2TDC
Stainless Steel Centrifugal Pump
Domestic Water Supply
HVAC
Water treatment
Commercial buildings
Construction sites/factories
Greenhouses and orchards
2TDC series stainless steel centrifugal pump with enlarged high-rigidity shaft, 2 staged stainless steel impellers, optional 4 or 6 bulge volute, IP55 F-class insulated motor and built-in thermal protector, is ideal for industrial circulation cleaning, household water pressurization, agricultural irrigation and cooling tower water circulation systems.
01
/
03
Working Condition
Medium temperature
Normal Type: -20~+70°C
High Temperature Type: -20~+104°C
Ambient temperature
≤50°C
Protection
IP55
Product Features
- S.S. 2-staged impellers
- S.S. pump body
- Higher head
Motor
Motor
Single Phase: 220~240V/50Hz
Three Phase: 380~415V/50Hz
Motors of other voltages are available upon request.
Single phase with thermal protector
Insulation Class: F
Product Parameters
| Model | Power kW | (Amps) | Speed (rpm) | Rated flow (m³/h) | Rated head (m) | |||||||
| 220V | 380V | |||||||||||
| 2TDC70/075(T) | 1 | 6.2 | 2.4 | 2900 | 4.2 | 30 | ||||||
| 2TDC70/090(T) | 1.1 | 7.0 | 2.6 | 2900 | 4.2 | 34 | ||||||
| 2TDC70/110(T) | 1.5 | 9.2 | 3.5 | 2900 | 4.2 | 43 | ||||||
| 2TDC70/150(T) | 2.2 | 13 | 4.1 | 2900 | 4.2 | 48 | ||||||
| 2TDC120/110(T) | 1.5 | 9.2 | 3.5 | 2900 | 7.2 | 32 | ||||||
| 2TDC120/150(T) | 2.2 | 13 | 4.1 | 2900 | 7.2 | 38 | ||||||
| 2TDC120/220T | 3.0 | - | 6.3 | 2900 | 7.2 | 49 | ||||||
| 2TDC120/300T | 3.0 | - | 6.3 | 2900 | 7.2 | 56 | ||||||
| 2TDC200/220T | 3.0 | - | 6.3 | 2900 | 12 | 34 | ||||||
| 2TDC200/300T | 4.0 | - | 7.5 | 2900 | 12 | 48 | ||||||
| Model | Flow (m³/h) | 1.2 | 3.0 | 4.2 | 5.4 | 6.6 | 7.2 | 9.0 | 10.8 | 12 | 15 | 17 |
| 2TDC70/075(T) | Head (m) | 40 | 36 | 30 | 28 | 24 | 21 | 14 | - | - | - | - |
| 2TDC70/090(T) | 46 | 41 | 37 | 31 | 25 | 22 | 12 | - | - | - | - | |
| 2TDC70/110(T) | 52.5 | 48 | 43 | 35.5 | 29.5 | 25 | - | - | - | - | - | |
| 2TDC70/150(T) | 58 | 53.5 | 48 | 41 | 32.5 | 20 | - | - | - | - | - | |
| 2TDC120/110(T) | - | 40 | 38 | 35 | 33 | 32 | 27.5 | 22 | - | - | - | |
| 2TDC120/150(T) | - | 48.5 | 46 | 43 | 40 | 38 | 33.5 | 27 | - | - | - | |
| 2TDC120/220T | - | 59 | 57 | 54 | 52 | 49 | 45.5 | 38 | 23 | - | - | |
| 2TDC120/300T | - | 65 | 63 | 60.5 | 58 | 56 | 51.5 | 45 | 38 | - | - | |
| 2TDC200/220T | - | - | 49 | 47.5 | 46 | 45 | 41.5 | 36 | 34 | 25.5 | - | |
| 2TDC200/300T | - | - | 63 | 61 | 60 | 58 | 55 | 51 | 48 | 39 | 31 | |
| 2TDC200/370T | - | - | 70 | 69 | 67 | 65 | 62 | 57.5 | 55 | 47 | 40 | |
