Pump Well. Trust Swell111
TCK

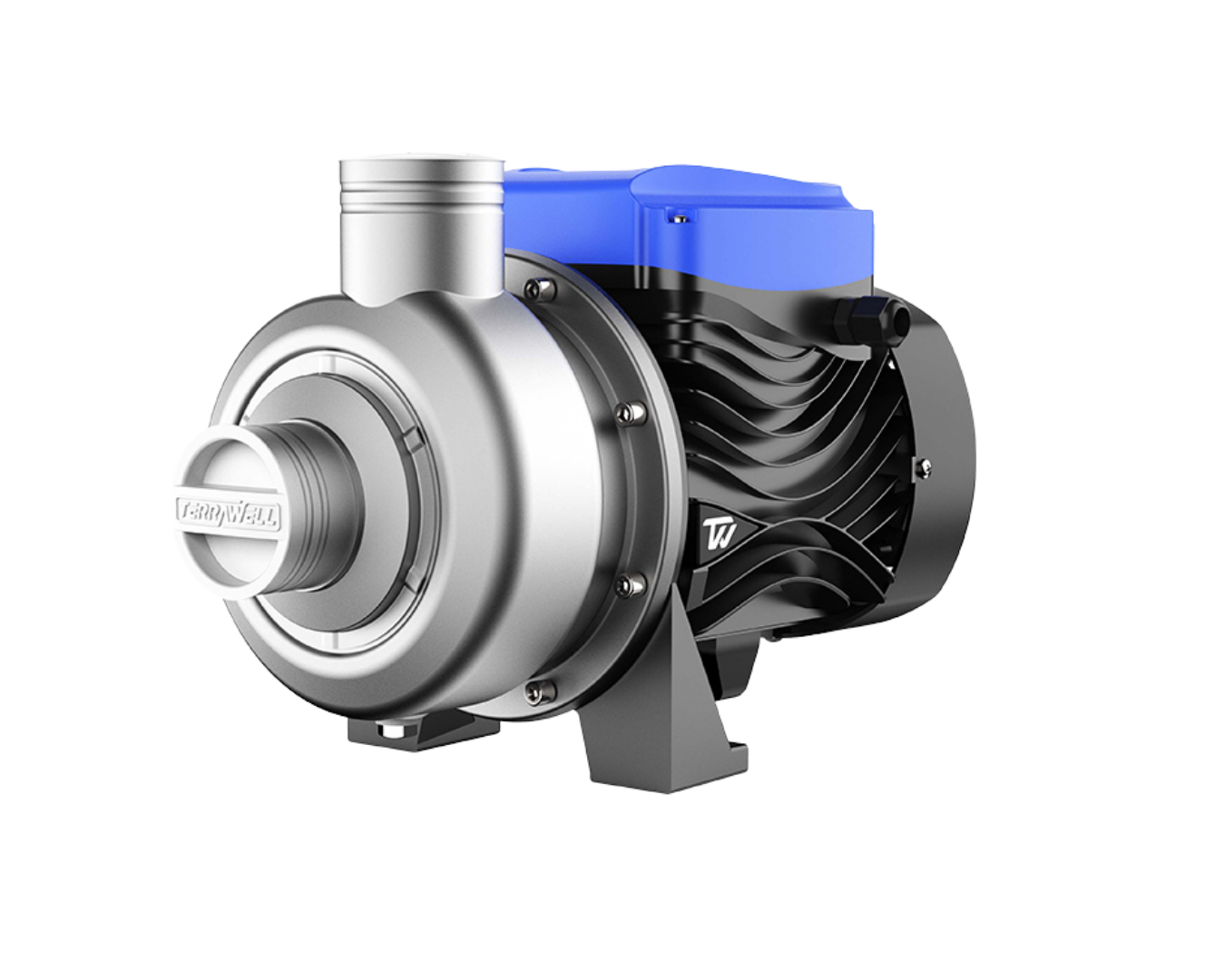

Stainless Steel Centrifugal Pump
Water treatment
Backyard fish tanks
Greenhouses and orchards
HVAC
TCK series stainless steel centrifugal pump with open anti-clog impeller, IP55 F-class insulated motor and built-in thermal protection, it can transfer liquid with 8mm soft solids, ideal for industrial cleaning, air-conditioning cooling and drinking water supply systems.
01
/
03
Working Condition
Medium temperature
-10~+110°C
Ambient temperature
≤40°C
Protection
IPX4
Product Features
- S.S. pump body
- Open S.S. impeller
- Low noise
Motor
Motor
Single Phase: 180~230V/50Hz
Single phase with thermal protector
Insulation Class: F
Max.solid diameter:≤4~9mm
Product Parameters
| MODEL | POWER | MAX.HEAD(m) | MAX.FLOW (L/min) | MAX SUCTION (m) |
SPEED rpm |
INLET OUTLET |
|
| (kW) | (HP) | ||||||
| TCK50 | 0.37 | 0.5 | 12 | 100 | 8 | 2900 | 1.25"X1" |
| TCK100 | 0.75 | 1 | 13 | 185 | 8 | 2900 | 1.5"X1.25" |
| TCK120 | 0.9 | 1.2 | 16 | 190 | 8 | 2900 | 1.5"X1.25" |
| TCK150 | 1.1 | 1.5 | 12.2 | 420 | 8 | 2900 | 2"X2" |
| TCK150/2.5 | 1.1 | 1.5 | 11 | 510 | 8 | 2900 | 2.5"X2" |
| TCK200 | 1.5 | 2 | 14 | 470 | 8 | 2900 | 2"X2" |
| TCK200/2.5 | 1.5 | 2 | 13 | 520 | 8 | 2900 | 2.5"X2" |
| TCK300 | 2.2 | 3 | 18 | 520 | 8 | 2900 | 2"X2" |
| TCK300/2.5 | 2.2 | 3 | 17 | 590 | 8 | 2900 | 2.5"X2" |
| TCK400 | 3 | 4 | 21 | 540 | 8 | 2900 | 2"X2" |
| TCK400/2.5QH | 3 | 4 | 20 | 650 | 8 | 2900 | 2.5"X2" |
| TCK600QH | 4 | 5.5 | 21 | 720 | 8 | 2900 | 2.5"X2" |
| TCK750QH | 5.5 | 7.5 | 23 | 750 | 8 | 2900 | 2.5"X2" |
| TCK1000QH | 7.5 | 10 | 28 | 800 | 8 | 2900 | 2.5"X2" |
