CMI

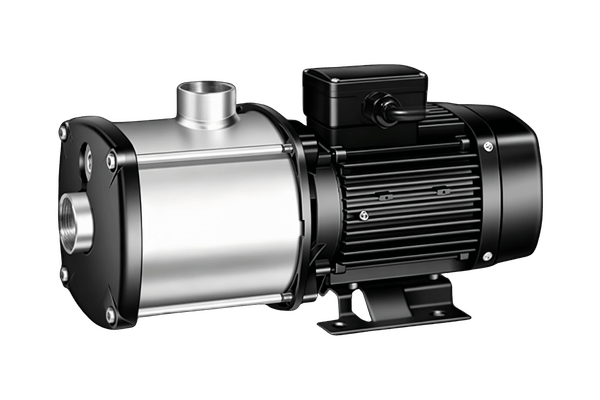

Horizontal Multistage Centrifugal Pump
Domestic Water Supply Domestic Water Supply
Water treatment Water treatment
Commercial buildings Commercial buildings
Construction sites/factories Construction sites/factories
HVAC HVAC
CMI horizontal stainless steel multistage centrifugal pump with IP55 , F-class insulated motor is energy-saving, sturdy and durable, suitable for clean water pressurization, industrial circulation, water treatment and domestic water supply under various temperature and pressure working conditions.
CMI
01 / 03
Working Condition
Medium temperature
Normal Type: -20~+70°C High Temperature Type: -20~+104°C
Ambient temperature
≤50°C
Protection
IP44
Product Features
  • SUS304 stainless steel middle section
  • SUS304 stainless steel multistage impellers
  • Low noise
Motor

Single Phase: 220~240V/50Hz

Three Phase: 380~415V/50Hz

Motors of other voltages are available upon request.

Single phase with thermal protector

Insulation Class: F

Product Parameters
Model Power
  P2(kW)		 Flow
Q
(m³/h)		 0.4 0.6 0.8 1.0 1.2 1.4 1.6 1.8 2.0 2.2 2.4
CMI1-2(T) 0.25 Head
H
(m)		 19.5 19 18.5 18 17.5 17 16 15 14 13 12
CMI1-3(T) 0.25 29 28.5 26 25 24.5 23.5 22 21 19 17 16
CMI1-4(T) 0.37 37 36 35 33 32 30 28 27 26 22 20
CMI1-5(T) 0.37 43 42 41 38 36 34 32 29 27 25 22
CMI1-6(T) 0.37 51 50 49 46 44 42 40 36 32 30 26
CMI1-7(T) 0.55 60 58 56 53 51 49 45 42 38 34 30
CMI1-8(T) 0.75 72 70 68 64 61 60.5 55 51 46 43 39
Model Power
  P2(kW)		 Flow Q
(m³/h)		 0.8 1.2 1.6 2.0 2.4 2.8 3.0 3.2 3.6 4.0
CMI2-2(T) 0.25 Head
H
(m)		 19.5 19 18.5 18 17 16.5 15 14.5 13.5 12
CMI2-3(T) 0.37 27 26 25 24 23 22 21 20 17 15
CMI2-4(T) 0.55 36 35 34 32 31 29 28 27 23 20
CMI2-5(T) 0.55 44 43 42 40 38 36 35 33 28.5 24
CMI2-6(T) 0.75 53 51.5 49 47 44 43 42 37 32 27
CMI2-7(T) 1.0 63 61 59 57 54 51 49 47 41 35
CMI2-8(T) 1.1 70 68 65 62 60 58 56 53 44 39
Model Power
  P2(kW)		 Flow
Q
(m³/h)		 0.8 1.2 1.6 2.0 2.4 2.8 3.0 3.2 3.6 4.0
CMI3-2(T) 0.25 Head
H
(m)		 19.5 19 18.5 18 17 16.5 15 14.5 13.5 12
CMI3-3(T) 0.37 27 26 25 24 23 22 21 20 17 15
CMI3-4(T) 0.55 36 35 34 32 31 29 28 27 23 20
CMI3-5(T) 0.55 44 43 42 40 38 36 35 33 28.5 24
CMI3-6(T) 0.75 53 51.5 49 47 44 43 42 37 32 27
CMI3-7(T) 1.0 63 61 59 57 54 51 49 47 41 35
CMI3-8(T) 1.1 70 68 65 62 60 58 56 53 44 39
Model Power
  P2(kW)		 Flow
Q
(m³/h)		 1.0 2.0 3.0 4.0 4.5 5.0 6.0 7.0
CMI4-2(T) 0.37 Head
H
(m)		 19.5 18.5 17 15.5 14.5 13 9.5 5
CMI4-3(T) 0.55 29 27.5 25 22.5 21 19.5 13 9
CMI4-4(T) 0.75 39 37 34.5 31 29 26 19 11
CMI4-5(T) 0.75 48 45.5 43 38 35.5 32 23 12
CMI4-6(T) 1.0 59 56 53 46 44 39.5 29 15
CMI4-7(T) 1.1 67 64 60.5 53 50 45.5 33 16
CMI4-8(T) 1.3 78 74 69 61.5 58 52 37.5 20
Model Power
  P2(kW)		 Flow
Q
(m³/h)		 1.0 2.0 3.0 4.0 4.5 5.0 6.0 7.0
CMI5-2(T) 0.37 Head
H
(m)		 19.5 18.5 17 15.5 14.5 13 9.5 5
CMI5-3(T) 0.55 29 27.5 25 22.5 21 19.5 13 9
CMI5-4(T) 0.75 39 37 34.5 31 29 26 19 11
CMI5-5(T) 0.75 48 45.5 43 38 35.5 32 23 12
CMI5-6(T) 1.0 59 56 53 46 44 39.5 29 15
CMI5-7(T) 1.1 67 64 60.5 53 50 45.5 33 16
CMI5-8(T) 1.3 78 74 69 61.5 58 52 37.5 20
Model Power
  P2(kW)		 Flow
Q
(m³/h)		 3.0 4.0 5.0 6.0 7.0 8.0 9.0 10 11
CMI7-30(T) 1.3 Head
H
(m)		 40 38.5 36.5 35 32 30 27 23.5 19
CMI7-40(T) 1.85 52 50 48 45 42 39 35 31 26.5
CMI7-50(T) 2.2 66 64 61 58 55 52 47.5 43 38
Model Power
  P2(kW)		 Flow
Q
(m³/h)		 4.0 5.0 6.0 7.0 8.0 9.0 10
CMI8-10(T) 0.55 Head
H
(m)		 15 14 13 12.5 10 9 8
CMI8-15(T) 0.75 25 23 22 21 17 14 12
CMI8-20(T) 1.0 31 29 27 25 22 20 17
CMI8-25(T) 1.5 43 40 38 34 30 25 20
CMI8-30(T) 1.85 50 46 44 40 32 30 26
CMI8-35(T) 2.2 56 51 48 44 42 35 28
CMI8-40(T) 2.2 65 57.5 57 50 45 42 34
Model Power
  P2(kW)		 Flow
Q
(m³/h)		 4.0 6.0 8.0 10 12 14 16
CMI8-10B(T) 0.55 Head
H
(m)		 11 10 9 8 7 6 5
CMI8-20B(T) 0.75 22 20 18 17 13 11 8
CMI8-30B(T) 1.1 31 29 26 24 20 16 11
CMI8-40B(T) 1.5 41 39 34 33 28 23 17
CMI8-50B(T) 2.2 51 49 45 42 37 30 23
CMI8-60BT 3.0 62 58 52 48 42 36 30
Model Power
  P2(kW)		 Flow
Q
(m³/h)		 4 5 6 7 8 9 10 11 12 13 14
CMI10-1(T) 0.65 Head
H
(m)		 14.5 14 13.5 13 12.5 12 11 10 9 8 7
CMI10-2(T) 1.2 30 29.5 29 28 27 26 24 23 21 19 16
CMI10-3(T) 2.2 45.5 45 44 43 42 40 38 36 33 30 26
CMI10-4T 3.0 61 60.5 60 58 56 54 52 48 45 41 36
CMI10-5T 3.0 76.5 76 75 74 71 68 63 61 57 52 46
Model Power
  P2(kW)		 Flow
Q
(m³/h)		 6.0 7.0 8.0 9.0 10 11 12 13 14
CMI12-10(T) 1.0 Head
H
(m)		 19 18 17.5 16 15.5 14 12.5 12 10.5
CMI12-15(T) 1.5 28 27 26 25 24 22 19 18 15
CMI12-20(T) 1.85 38 36 35 32 31 29 26 24 20
CMI12-25(T) 2.2 47 45 43 41.5 39 36 32 30.5 27
CMI12-30T 3.0 53.5 52 50 47.5 45 42 40 35 30
Model Power
  P2(kW)		 Flow
Q
(m³/h)		 7.0 8.0 9.0 10 11 12 13 14 15 16
CMI12-10B(T) 0.75 Head
H
(m)		 11.5 11 10.5 10 9.5 8.5 8 7 6 5
CMI12-20B(T) 1.1 23 22.5 22 21 20.5 19.5 18.5 17 15.5 13
CMI12-30B(T) 1.85 35 34.5 33.5 32.5 31 29.5 28 26 23.5 20
CMI12-40B(T) 2.2 47 46 45 43.5 41.5 39.5 37.5 35 31.5 27.5
CMI12-50BT 3.0 60 58 56.5 55 52.5 50 47 44 40 35
Model Power
  P2(kW)		 Flow
Q
(m³/h)		 8 10 12 14 16 18 20 22 24
CMI16-10(T) 1.0 Head
H
(m)		 12 11.5 11 10.5 10 9 8 7 6
CMI16-20(T) 1.5 24 23 22 21 20 19 16 14 12
CMI16-30(T) 2.2 38 36 34 33 30 28 26 23 20
CMI16-40T 3.0 50 48 46 44 40 38 36 32 28
Model Power
  P2(kW)		 Flow
Q
(m³/h)		 10 12 14 16 18 20 22 24 26 28
CMI20-10(T) 1.0 Head
H
(m)		 13 12.5 12 11.5 11 10 9.5 9 8 7
CMI20-20(T) 1.85 26 25 24 23 22 21 20 18 17 14
CMI20-30T 3.0 39 38 36 35 33 31.5 30 27 24 21
CMI20-40T 4.0 52 50 48 46 44 42 40 36 32 28
