ZCMI

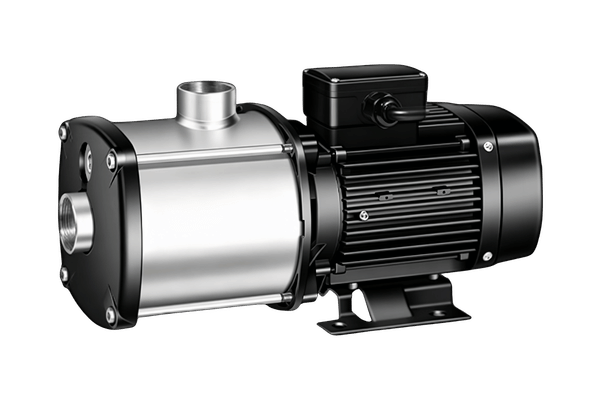

Horizontal Multistage Centrifugal Pump
Domestic Water Supply Domestic Water Supply
Water treatment Water treatment
Commercial buildings Commercial buildings
HVAC HVAC
ZCMI series self-priming stainless steel multistage centrifugal pump is with 8m maximum suction lift, IP55 F-class insulated motor , is energy-saving, sturdy and durable, ideal for clean water pressurization, industrial circulation and domestic water supply from low-level water sources.
ZCMI
01 / 03
Working Condition
Medium temperature
Normal Type: -20~+70°C High Temperature Type: -20~+104°C
Ambient temperature
≤50°C
Protection
IP44
Product Features
  • Self-priming capability
  • SUS304 stainless steel middle section and impeller
  • Low noise
  • Optional PPA or SUS304 stainless steel self suction cup
Motor

Motor

Single Phase: 220~240V/50Hz

Three Phase: 380~415V/50Hz

Motors of other voltages are available upon request.

Single phase with thermal protector

Insulation Class: F

Product Parameters
Model Power
  P2(kW)		 Max.suction head (m) Flow
Q
(m³/h)		 0.4 0.6 0.8 1.0 1.2 1.4 1.6 1.8 2.0 2.2 2.4
ZCMI1-2(T) 0.25 5 HeadH
(m)		 17 16.5 16 15 14.5 14 13.5 12 11 10 9
ZCMI1-3(T) 0.25 5 26 25 24 23 22.5 21 20 18.5 17 16 14
ZCMI1-4(T) 0.37 5 35 34 33 32 31 29 27 26 23 21 20
ZCMI1-5(T) 0.37 5 43 42 41 38 36 34 32 29 27 25 22
Model Power
  P2(kW)		 Max.suction head (m) Flow
Q
(m³/h)		 0.8 1.2 1.6 2.0 2.4 2.8 3.0 3.2 3.6 4.0
ZCMI2-2(T) 0.25 5 Head
H
(m)		 18.5 18 17 16 15 13 12 9 7 5
ZCMI2-3(T) 0.37 5 27 26 25 24 23 22 20 19 17 15
ZCMI2-4(T) 0.55 5 36 34 33 30 29 26 22 21 19 14
ZCMI2-5(T) 0.55 5 44 42 40 38 35 32 30 28 23 18
Model Power
  P2(kW)		 Max.suction head (m) Flow
Q
(m³/h)		 0.8 1.2 1.6 2.0 2.4 2.8 3.0 3.2 3.6 4.0
ZCMI3-2(T) 0.25 5 Head
H
(m)		 18.5 18 17 16 15 13 12 9 7 5
ZCMI3-3(T) 0.37 5 27 26 25 24 23 22 20 19 17 15
ZCMI3-4(T) 0.55 5 36 34 33 30 29 26 22 21 19 14
ZCMI3-5(T) 0.55 5 44 42 40 38 35 32 30 28 23 18
Model Power
  P2(kW)		 Max.suction head (m) Flow
Q
(m³/h)		 1.0 2.0 3.0 4.0 4.5 5.0 6.0
ZCMI4-2(T) 0.37 5 Head
H
(m)		 18 16 15 13 10 8 5
ZCMI4-3(T) 0.55 5 28 26 23 19.5 17 14.5 6
ZCMI4-4(T) 0.75 5 38 35 32 28 25 20 8
ZCMI4-5(T) 0.75 5 46 43 40 35 31 26 10
ZCMI4-6(T) 1.1 5 58.5 55 51 45.5 42 36 25
Model Power
  P2(kW)		 Max.suction head (m) Flow
Q
(m³/h)		 1.0 2.0 3.0 4.0 4.5 5.0 6.0
ZCMI5-2(T) 0.37 5 Head
H
(m)		 18 16 15 13 10 8 5
ZCMI5-3(T) 0.55 5 28 26 23 19.5 17 14.5 6
ZCMI5-4(T) 0.75 5 38 35 32 28 25 20 8
ZCMI5-5(T) 0.75 5 46 43 40 35 31 26 10
ZCMI5-6(T) 1.1 5 58.5 55 51 45.5 42 36 25
Model Power
  P2(kW)		 Max.suction head (m) Flow
Q
(m³/h)		 1.0 2.0 3.0 4.0 4.5 5.0 6.0
ZCMI5-2(T) 0.37 5 Head
H
(m)		 18 16 15 13 10 8 5
ZCMI5-3(T) 0.55 5 28 26 23 19.5 17 14.5 6
ZCMI5-4(T) 0.75 5 38 35 32 28 25 20 8
ZCMI5-5(T) 0.75 5 46 43 40 35 31 26 10
ZCMI5-6(T) 1.1 5 58.5 55 51 45.5 42 36 25
Model Power
  P2(kW)		 Max.suction head (m) Flow
Q
(m³/h)		 3.0 4.0 5.0 6.0 7.0 8.0 9.0 10 11
ZCMI7-30(T) 1.3 5 HeadH
(m)		 40 38.5 36.5 35 32 30 27 23.5 19
ZCMI7-40(T) 1.85 7 52 50 48 45 42 39 35 31 26.5
ZCMI7-50(T) 2.2 6 66 64 61 58 55 52 47.5 43 38
Model Power
  P2(kW)		 Max.suction head (m) Flow
Q
(m³/h)		 4.0 5.0 6.0 7.0 8.0 9.0 10 11
ZCMI8-15(T) 0.75 3 Head
H
(m)		 23 21.5 20 18 16 13 9.5 4
ZCMI8-20(T) 1.0 6 29 27.5 26 23.5 21 18.5 16 12.5
ZCMI8-25(T) 1.5 6 39.5 37 35 32 29 25 22 17.5
ZCMI8-30(T) 1.85 5 43.5 41 38 35 31 27.5 24 18.5
ZCMI8-35(T) 2.2 5 55 52 48 44 40 35 30 24
ZCMI8-40(T) 2.2 6 58 55 52 47 42 37 32 25
Model Power
  P2(kW)		 Max.suction head (m) Flow
Q
(m³/h)		 4.0 6.0 7.0 8.0 9.0 10 11
ZCMI8-20B(T) 0.75 6 Head
H
(m)		 19 18 16.5 15 14 12.5 11
ZCMI8-30B(T) 1.1 5 29 27 25 23 21 18.5 16
ZCMI8-40B(T) 1.5 8 39 36 33.5 31 28 25 22
ZCMI8-50B(T) 2.2 6 48.5 45 42 38.5 35 31 27
Model Power
  P2(kW)		 Max.suction head (m) Flow
Q
(m³/h)		 4.0 6.0 8.0 9.0 10 11 12
ZCMI10-2(T) 1.2 2 Head
H
(m)		 30 28 24.5 23 19 17 8.5
ZCMI10-3(T) 2.2 5 45 41 36.5 33 28 25 12.5
ZCMI10-4T 3.0 6 60 55 49 45 39 34 17
ZCMI10-5T 3.0 5 79.5 75.5 69.5 65.5 60.5 53 26.5
Model Power
  P2(kW)		 Max.suction head (m) FlowQ
(m³/h)		 6.0 7.0 8.0 9.0 10 11 12 13 14
ZCMI12-15(T) 1.5 5 HeadH
(m)		 25 24 22 21 20 18 17 15 13
ZCMI12-20(T) 1.85 5 34 33 32 30 28 27 25 22 16
ZCMI12-25(T) 2.2 6 43 41 38.5 36 34 31 29 26 22.5
ZCMI12-30T 3.0 5 51.5 50 48 45 43 41 38 34 25
Model Power
  P2(kW)		 Max.suction head (m) Flow
Q
(m³/h)		 6.0 8.0 9.0 10 11 12 13 14
ZCMI12-20B(T) 1.1 5 Head
H
(m)		 24.5 23 22.5 22 20 19 17 16
ZCMI12-30B(T) 1.85 5 37 35 34 32 31 29 26 24
ZCMI12-40B(T) 2.2 6 50 47 45 43 41 38 35 32
Model Power
  P2(kW)		 Max.suction head (m) Flow
Q
(m³/h)		 8.0 10 12 14 16 18 20 22
ZCMI16-20(T) 1.5 2.5 Head
H
(m)		 24.5 23 22 20 18 16 13 11
ZCMI16-30(T) 2.2 6 37 35 34 32 29 26 22 19
Model Power
  P2(kW)		 Max.suction head (m) Flow
Q
(m³/h)		 10 12 14 16 18 20 22 24
ZCMI20-20(T) 1.85 3 Head
H
(m)		 25 24 22.5 21.5 20 18 16 13
ZCMI20-30T 3.0 6 38 36.5 34 33 31.5 29 26 22
