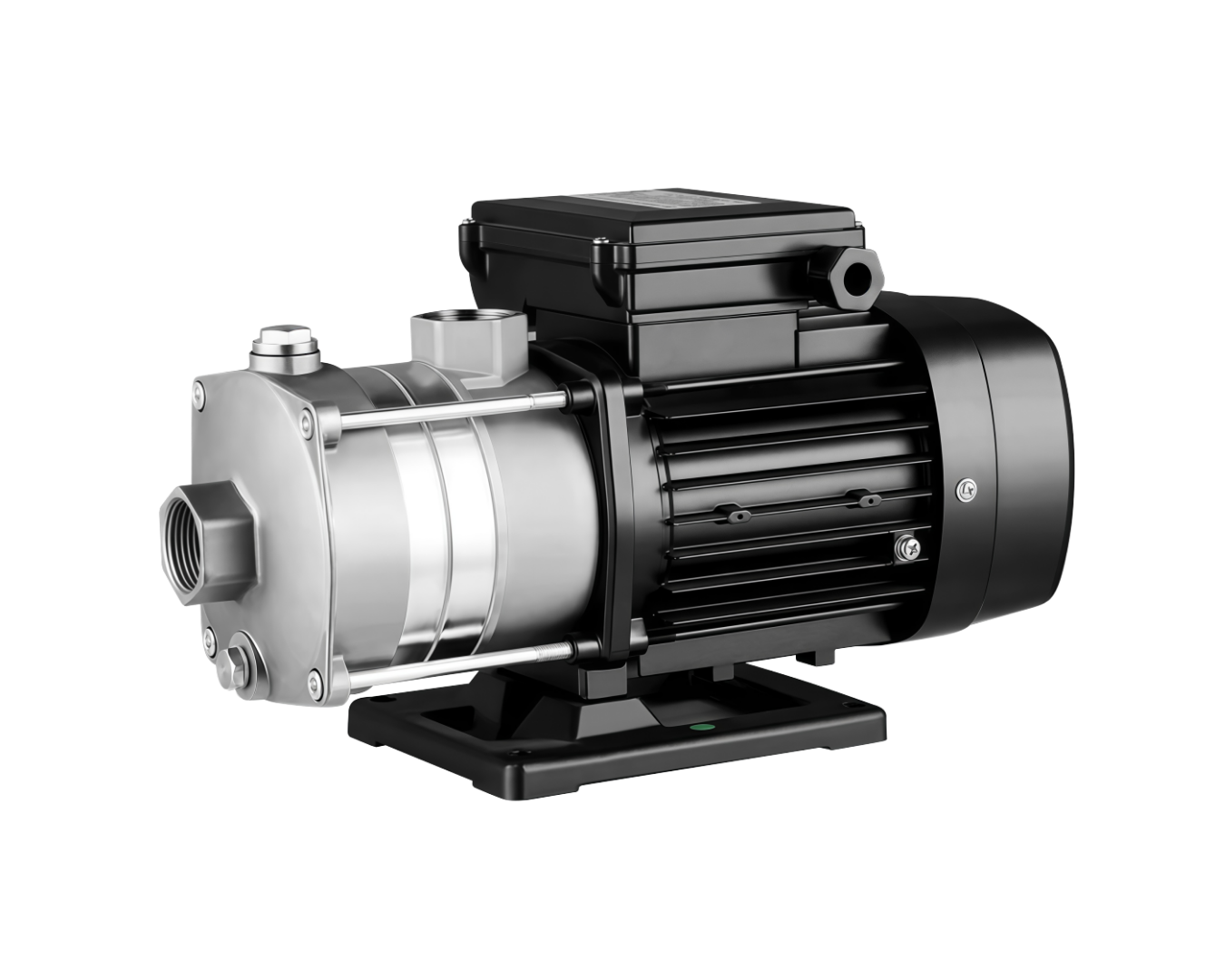

CM Horizontal Multistage Centrifugal Pump

Pump Well. Trust Swell111

Horizontal Multistage Centrifugal Pump

Domestic Water Supply

Water treatment

Commercial buildings

HVAC

CM series are horizontal multi-stage centrifugal pumps equipped with precision cast stainless steel inlet and outlet, stainless steel middle pump sections and impellers. Featuring excellent rust resistance, hygienic performance, stable operation, high efficiency and energy saving, this series is widely used in domestic water boosting and various industrial liquid circulation conveying scenarios.

01 / 03

Working Condition

Medium temperature

Normal Type: -20~+70°C High Temperature Type: -20~+104°C

Ambient temperature

≤50°C

Protection

IP55

Product Fetaures

SUS304 stainless middle section
SUS304 stainless multistage impellers
Low noise
Precision cast stainless steel for inlet and outlet sections

Motor

Single Phase: 220~240V/50Hz

Three Phase: 380~415V/50Hz

Motors of other voltages are available upon request.

Single phase with thermal protector

Insulation Class: F

Product Parameters

Model	Power(kW)	Q (m3/h)	1.0	1.5	2.0	2.5	3.0	3.5
CM2-20(T)	0.37	H (m)	18	16	14	13	11	10
CM2-30(T)	0.37		27	24	21	20	17	14
CM2-40(T)	0.55		35	32	28	26	23	17
CM2-50(T)	0.55		43	40	35	33	28	22
CM2-50(T)	0.55		50	48	42	38	32	25
CM2-60(T)	0.75		50	48	42	38	32	25
Model	Power(kW)	Q (m³/h)	2.0	3.0	4.0	5.0	6.0	7.0
CM4-20(T)	0.55	H (m)	18	16	15	13	10	7
CM4-30(T)	0.75		27	25	22	19	15	10
CM4-40(T)	0.75		36	33	30	26	20	13
CM4-50(T)	1.0		44	41	38	32	26	20
CM4-60(T)	1.1		53	50	45	40	33	24
Model	Power (kW) P2V	Q (m³/h)	4.0	5.0	6.0	7.0	8.0	9.0	10
CM8-10(T)	0.55	H (m)	15	14	13	12.5	12	9	8
CM8-15(T)	0.75		25	23	22	21	20	14	12
CM8-20(T)	1.0		32	29	27	25	24	21	17
CM8-25(T)	1.5		43	40	38	34	27	25	20
CM8-30(T)	1.85		50	46	44	40	36	30	26
CM8-35(T)	2.2		56	51	48	44	43	35	28
CM8-40(T)	2.2		65	57.5	57	50	48	42	34
Model	Power(kW)	Q (m³/h)	4.0	6.0	8.0	10	12	14	16
CM8-10B(T)	0.55	H (m)	11	10	9	8	7	6	5
CM8-20B(T)	0.75		22	20	19	18	13	11	8
CM8-30B(T)	1.1		31	29	26	24	20	16	11
CM8-40B(T)	1.5		41	39	37	33	28	23	17
CM8-50B(T)	2.2		51	49	46.5	42	37	30	23
CM8-60BT	3.0		62	58	52	48	42	36	30
Model	Power(kW)	Q (m³/h)	6.0	7.0	8.0	9.0	10	11	12	13	14
CM12-10(T)	1.0	N (m)	19	18	17.5	16	15.5	14	13.5	12	10.5
CM12-15(T)	1.5		28	27	26	25	24	22	20	18	15
CM12-20(T)	1.85		38	36	35	32	31	29	28	24	20
CM12-25(T)	2.2		47	45	43	41.5	39	36	33.5	30.5	27
CM12-30T	3.0		53.5	52	50	47.5	45	42	39	35	30
Model	Power(kW)	Q (m³/h)	7.0	8.0	9.0	10	11	12	13	14	15	16
CM12-10B(T)	0.75	H (m)	12	11.5	11	10.5	10	9.5	9	8	7	6
CM12-20B(T)	1.1		23	22.5	22	21	20.5	19.5	18.5	17	15.5	13
CM12-30B(T)	1.85		35	34.5	33.5	32.5	31	29.5	28	26	23.5	20
CM12-40B(T)	2.2		47	46	45	43.5	41.5	39.5	37.5	35	31.5	27.5
CM12-50BT	3.0		60	58	56.5	55	52.5	50	47	44	40	35
Model	Power(kW)	Q (m³/h)	8	10	12	14	16	18	20	22	24
CM16-10(T)	1.0	H (m)	12	11.5	11	10.5	10	9	8	7	6
CM16-20(T)	1.5		24	23	22	21	20	19	16	14	12
CM16-30(T)	2.2		38	36	34	33	30	28	26	23	20
CM16-40T	3.0		50	48	46	44	40	38	36	32	28
Model	Power(kW)	Q (m³/h)	10	12	14	16	18	20	22	24	26	28
CM20-10(T)	1.0	H (m)	13	12.5	12	11.5	11	10.5	10	9	8.5	7.5
CM20-20(T)	1.85		25	24	23	22	21	20	18	16	14	12
CM20-30T	3.0		39	38	36	35	33	31.5	30	27	24	21
CM20-40T	4.0		50	48	46	44	42	40	36	32	28	24
