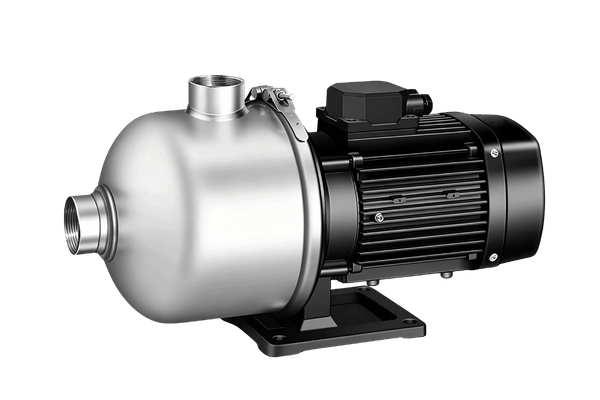

CMF Horizontal Multistage Centrifugal Pump

Pump Well. Trust Swell111

CMF

Horizontal Multistage Centrifugal Pump

Domestic Water Supply

Water treatment

Commercial buildings

HVAC

CMF series horizontal multi-stage centrifugal pumps feature an integrated stainless steel pump head with precision casting. Equipped with stainless steel middle sections and impellers, the pump delivers excellent rust resistance, sanitation, stable operation, low noise and high energy efficiency. It has passed CE, TÜV and GS certifications, widely applied in domestic water pressurization and various industrial liquid circulation systems.

01 / 03

Working Condition

Medium temperature

Normal Type: -20~+70°C High Temperature Type: -20~+104°C

Ambient temperature

≤50°C

Protection

IP55

Product Features

S.S. middle section
S.S. multistage impellers
Low noise

Motor

Single Phase: 220~240V/50Hz

Three Phase: 380~415V/50Hz

Motors of other voltages are available upon request.

Single phase with thermal protector

Insulation Class: F

Product Parameters

Model	Power(kW)	Q (m³ /h)	1.0	1.5	2.0	2.5	3.0	3.5
CMF2-20(T)	0.37	H (m)	18	16	14	13	11	10
CMF2-20(T)	0.37		27	24	21	20	17	14
CMF2-30(T)	0.37		27	24	21	20	17	14
CMF2-30(T)	0.37		35	32	28	26	23	17
CMF2-40(T)	0.55		35	32	28	26	23	17
CMF2-50(T)	0.55		43	40	35	33	28	22
CMF2-60(T)	0.75		50	48	42	38	32	25
Model	Power(kW)	(m³ /h)	2.0	3.0	4.0	5.0	6.0	7.0
CMF4-20(T)	0.55	H (m)	18	16	15	13	10	7
CMF4-30(T)	0.75		27	25	22	19	15	10
CMF4-40(T)	0.75		36	33	30	26	20	13
CMF4-50(T)	1.0		44	41	38	32	26	20
CMF4-60(T)	1.1		53	50	45	40	33	24
Model	Power(kW)	Q (m³ /h)	4.0	5.0	6.0	7.0	8.0	9.0	10
CMF8-10(T)	0.6	H (m)	15	14	13	13	12	9	8
CMF8-15(T)	0.8		25	23	22	21	20	14	12
CMF8-20(T)	1.0		32	29	27	25	24	21	17
CMF8-25(T)	1.5		43	40	38	34	27	25	20
CMF8-30(T)	1.85		50	46	44	40	36	30	26
CMF8-35(T)	2.2		56	51	48	44	43	35	28
CMF8-40(T)	2.2		65	57.5	57	50	48	42	34
Model	Power (kW)	Q (m³ /h)	4.0	6.0	8.0	10	12	14	16
CMF8-10B(T)	0.55	H (m)	11	10	9	8	7	6	5
CMF8-20B(T)	0.75		22	20	19	18	13	11	8
CMF8-30B(T)	1.1		31	29	26	24	20	16	11
CMF8-40B(T)	1.5		41	39	37	33	28	23	17
CMF8-50B(T)	2.2		51	49	46.5	42	37	30	23
Model	Power(kW)	Q (m³ /h)	6.0	7.0	8.0	9.0	10	11	12	13	14
CMF12-10(T)	1.0	H (m)	19	18	17.5	16	15.5	14	13.5	12	10.5
CMF12-15(T)	1.5		28	27	26	25	24	22	20	18	15
CMF12-20(T)	1.85		38	36	35	32	31	29	28	24	20
CMF12-25(T)	2.2		47	45	43	41.5	39	36	33.5	30.5	27
CMF12-30T	3.0		53.5	52	50	47.5	45	42	39	35	30
Model	Power(kW)	Q (m³ /h)	7.0	8.0	9.0	10	11	12	13	14	15	16
CMF12-10B(T)	0.75	H (m)	12	11.5	11	10.5	10	9.5	9	8	7	6
CMF12-20B(T)	1.1		23	22.5	22	21	20.5	19.5	18.5	17	15.5	13
CMF12-30B(T)	1.85		35	34.5	33.5	32.5	31	29.5	28	26	23.5	20
CMF12-40B(T)	2.2		47	46	45	43.5	41.5	39.5	37.5	35	31.5	27.5
CMF12-50BT	3.0		60	58	56.5	55	52.5	50	47	44	40	35

Model	Power(kW)	Q (m³ /h)	8	10	12	14	16	18	20	22	24
CMF16-10(T)	1.0	H (m)	12	11.5	11	10.5	10	9	8	7	6
CMF16-20(T)	1.5		24	23	22	21	20	19	16	14	12
CMF16-30(T)	2.2		38	36	34	33	30	28	26	23	20

Model	Power(kW)	Q (m³ /h)	10	12	14	16	18	20	22	24	26	28
CMF20-10(T)	1.0	H (m)	13	12.5	12	11.5	11	10.5	10	9	8.5	7.5
CMF20-20(T)	1.85		25	24	23	22	21	20	18	16	14	12
CMF20-30T	3.0		39	38	36	35	33	31.5	30	27	24	21
