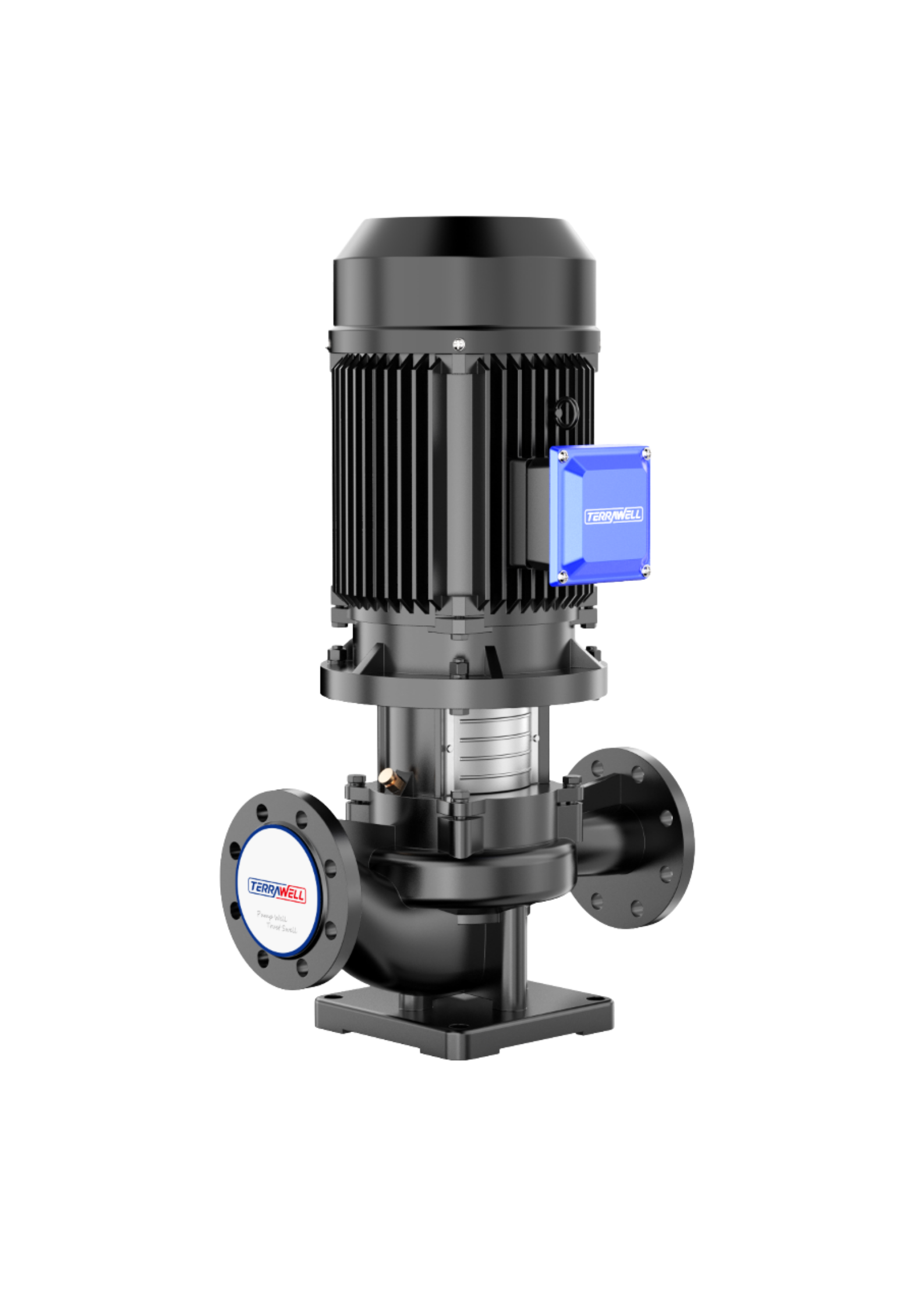

TP(L) Pipeline Centrifugal Pump

Pump Well. Trust Swell111

TP(L)

Pipeline Centrifugal Pump

HVAC

Commercial buildings

Construction sites/factories

TP(L) Series features a high-efficiency hydraulic flow model. TP's shaft and motor shaft are connected by a rigid sleeve coupling. TPL is fitted with an extended-shaft motor connected to the pump casing. Both are suitable for HVAC heating & cooling systems, hot water circulation, building water supply, central air conditioning, boiler water circulation and industrial circulating water systems.

01 / 03

Working Condition

Medium temperature

TP:-20°C ~ +110°C, TPL:-20°C ~ +90°C

Ambient temperature

≤40°C

Max working pressure

PN16/PN25

Protection

IP55

Product Features

TP: Rigid sleeve coupling
Easy for maintance
TPL: Extended-shaft motor
Vertical inline design
Space-saving & easy installation
High-efficiency hydraulic impeller, energy-saving
Low vibration & low noise
Cast iron impeller

Motor

Three Phase: 380~415V/50Hz

Insulation Class: F
