Pump Well. Trust Swell111

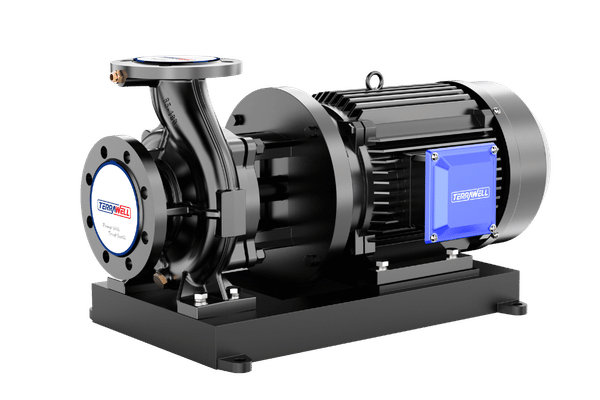

TWZ/TPW
Horizontal Pipeline Centrifugal Pump
HVAC
Commercial buildings
Construction sites/factories
TWZ Series features a high-efficiency hydraulic flow model.The pump shaft and motor shaft are connected by a rigid sleeve coupling. The pump casing and cover are fitted with wear rings for low noise, low vibration and easy maintenance.
TPW series deliver outstanding hydraulic performance. Fitted with an extended-shaft motor connected to the pump casing, to offer remarkable cost advantages.
TPW series deliver outstanding hydraulic performance. Fitted with an extended-shaft motor connected to the pump casing, to offer remarkable cost advantages.
01
/
03
Working Condition
Medium temperature
TWZ:-20°C ~ +110°C, TPW:-20°C ~ +90°C
Ambient temperature
≤40°C
Max working pressure
PN16/PN25
Protection
IP55
Product Features
- TWZ:Rigid sleeve coupling
- Easy to maintance
- TPW:Extended-shaft motor
- Horizontal inline design
- Cast iron impeller
- Optional sliding base
Motor
Three Phase: 380~415V/50Hz
Insulation Class: F
