Pump Well. Trust Swell111
IE3
Motor

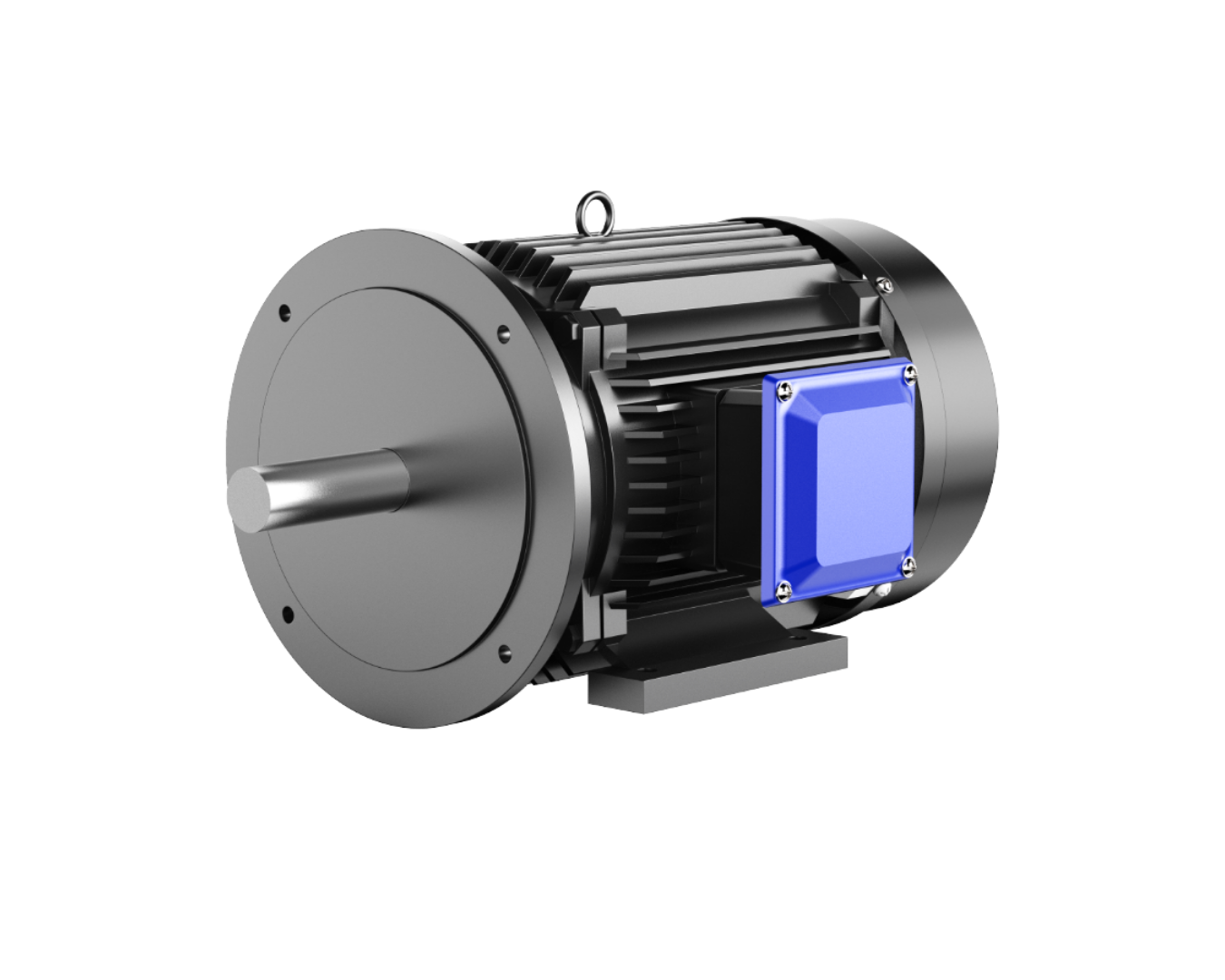

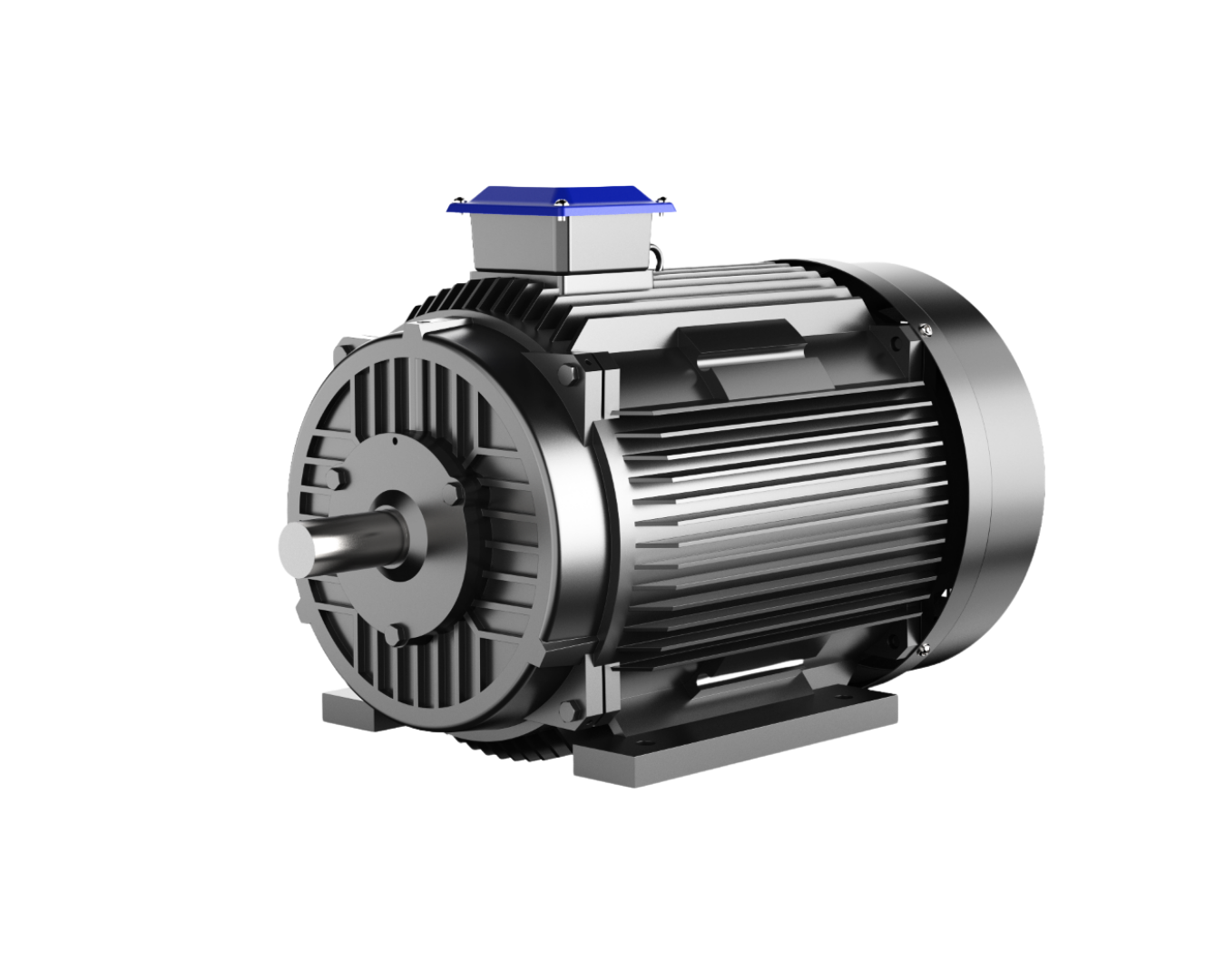

Motor has frame sizes 63–355, power rating 0.75–375 kW, duty S1, cooling method IC411, and energy efficiency class GB18613-2020 Grade 3 (IE3). It is suitable for general applications requiring energy‑saving continuous operation, such as fans and pumps. Featuring attractive appearance, high efficiency (meeting Grade 3 of GB18613-2020), F‑class insulation, IP55 protection, low noise, low vibration, and reliable operation.
01
/
03
General Information
Voltage
380V/Customized
Frequency
50/60Hz
Motor Power
0.75~375kW
Mounting type
B5 B35 B3 V1
Efficiency Level
IE2/IE3/IE4
Insulation Class
F
Protection Class
IP55
Cooling Method
Air-cooled
Thermal Protection
PTC or PT100 as required
Product Features
- High-efficiency
- Three-phase squirrel-cage asynchronous electric motor
- Meets IE3 international standards
Case
Optional for aluminum case or cast iron case ≤7.5kW
Cast iron case for all motor models
