QFD
Submersible Pump
Domestic Water Supply
Backyard fish tanks
Commercial buildings
Construction sites/factories
Farmland

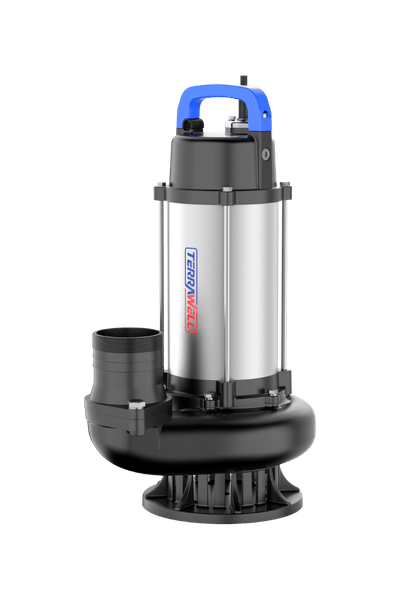

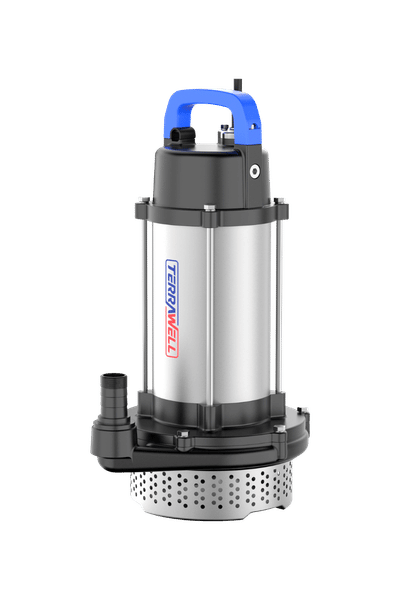

QFD cast iron submersible pump with IPX8 waterproof grade and double-end mechanical seal features reliable sewage drainage performance, widely used in farmland irrigation, household water supply, construction drainage and livestock breeding projects.
01
/
03
Working Condition
Medium temperature
0~+40°C
Ambient temperature
≤40°C
Max. sand content
0.1%
PH Value
6.5~8.5
Protection
IP X8
Max. immersion depth
5m
Pump
- Cast iron pump body
- S.S. motor housing
- Aluminum/plastic impeller
- High-temperature resistant bearings
- Pure copper motor windings
- Double shaft seal
- Standard 8m cable with plug
- With optional S.S. or plastic pump cover
- With optional S.S. and cast iron base support
Motor
Single Phase: 220~240V/50Hz
Three Phase: 380~415V/50Hz
Motors of other voltages are available upon request.
With thermal protector
Insulation Class: F
Product Parameters
| MODEL | POWER | RATED. FLOW (m³/h) |
MAX. FLOW (m³/h) |
RATED. HEAD (m) |
MAX. HEAD (m) |
SPEED (rpm) |
INLET OUTLET |
|
| (kW) | (HP) | |||||||
| QFD1.5-16-0.37 | 0.37 | 0.5 | 1.5 | 5 | 16 | 17 | 2900 | 25 |
| QFD1.5-25-0.55 | 0.55 | 0.75 | 1.5 | 7 | 25 | 26 | 2900 | 25 |
| QFD3-20-0.55 | 0.55 | 0.75 | 3 | 9 | 20 | 22 | 2900 | 25 |
| QFD1.5-32-0.75 | 0.75 | 1 | 1.5 | 8 | 32 | 33 | 2900 | 25 |
| QFD7-18-0.75 | 0.75 | 1 | 7 | 22 | 18 | 20 | 2900 | 40 |
| QFD10-16-0.75 | 0.75 | 1 | 10 | 22 | 16 | 19 | 2900 | 50 |
| QFD15-10-0.75 | 0.75 | 1 | 15 | 28 | 10 | 13 | 2900 | 65 |
| QFD30-6-0.75 | 0.75 | 1 | 30 | 48 | 6 | 9 | 2900 | 80 |
| QFD6-26-1.1 | 1.1 | 1.5 | 6 | 15 | 26 | 29 | 2900 | 40 |
| QFD6-30-1.1 | 1.1 | 1.5 | 6 | 18 | 30 | 32 | 2900 | 50 |
| QFD14-16-1.1 | 1.1 | 1.5 | 14 | 29 | 16 | 17 | 2900 | 50 |
| QFD15-15-1.1 | 1.1 | 1.5 | 15 | 29 | 15 | 17 | 2900 | 65 |
| QFD40-7-1.1 | 1.1 | 1.5 | 40 | 58 | 7 | 12 | 2900 | 80 |
| QFD6-33-1.5 | 1.5 | 2 | 6 | 19.5 | 33 | 36 | 2900 | 40 |
| QFD6-35-1.5 | 1.5 | 2 | 6 | 19.5 | 35 | 36 | 2900 | 50 |
| QFD15-18-1.5 | 1.5 | 2 | 15 | 33 | 18 | 20 | 2900 | 50 |
| QFD40-9-1.5 | 1.5 | 2 | 40 | 58 | 9 | 13 | 2900 | 80 |
| QFD20-15-1.5 | 1.5 | 2 | 20 | 35 | 15 | 20 | 2900 | 65 |
| QFD40-12-2.2 | 2.2 | 3 | 40 | 57 | 12 | 16 | 2900 | 80 |
| QFD60-7-2.2 | 2.2 | 3 | 60 | 80 | 7 | 11 | 2900 | 100 |
