Pump Well. Trust Swell111
GFN
Submersible Sewage Pump
Domestic Water Supply
Backyard fish tanks
Commercial buildings
Construction sites/factories
Farmland

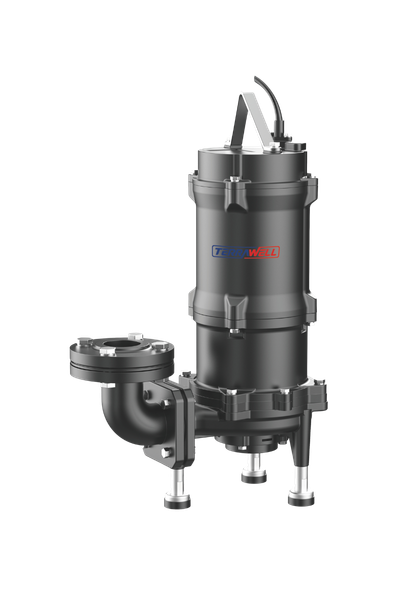

GFN submersible sewage cutter pump with built-in cutting impeller, IPX8 waterproof grade and double-end mechanical seal, is specially designed for crushing fibrous impurities in wastewater, widely used in residential, commercial and municipal sewage drainage systems.
01
/
03
Working Condition
Medium temperature
0~+40°C
Ambient temperature
≤40°C
Max. sand content
0.1%
PH Value
6.5~8.5
Protection
IP X8
Max. immersion depth
5m
Pump
- Cast iron pump body & motor housing
- With alloy cutter
- Semi-open cast iron impeller
- With special 560D mechanical seal
- Pure copper motor windings
- Double shaft seal
- Standard 8m cable with plug
Motor
Single Phase: 220~240V/50Hz
Three Phase: 380~415V/50Hz
With thermal protector
Insulation Class: F
Product Parameters
| MODEL | POWER | RATED. FLOW (m³/h) |
MAX. FLOW (m³/h) |
RATED. HEAD (m) |
MAX. HEAD (m) |
SPEED (rpm) |
INLET OUTLET |
|
| (kW) | (HP) | |||||||
| 32GFN21.5 | 1.5 | 2 | 3.6 | 10 | 23 | 26 | 2900 | 32 |
| 32GFN22.2 | 2.2 | 3 | 3.6 | 10 | 29 | 32 | 2900 | 32 |
| 50GFN22.2 | 2.2 | 3 | 12 | 19 | 20 | 25 | 2900 | 50 |
| 50GFN23.7 | 3.7 | 5 | 12 | 21 | 27 | 32 | 2900 | 50 |
