Pump Well. Trust Swell111
QCK

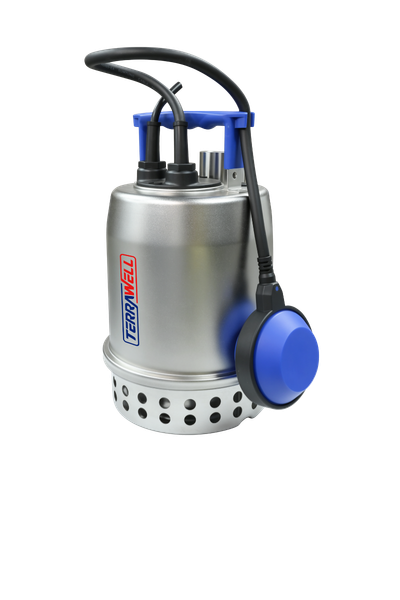

Micro Stainless Steel Submersible Pump
Domestic Water Supply
Backyard fish tanks
Construction sites/factories
QCK.S.S submersible pump adopts full copper motor winding & double-end mechanical seal. The open impeller can pass solids within 10mm. Equipped with thermal protection, optional float switch for automatic running. Widely used in household drainage, garden irrigation and light sewage pumping, featuring corrosion resistance, stable performance and long service life.
01
/
03
Working Condition
Medium temperature
0~+50°C
Ambient temperature
≤40°C
Max. sand content
≦10mm
PH Value
6.5~8.5
Protection
IP 68
Max. immersion depth
5m
Pump
- S.S.304 pump body
- S.S.304 impeller
- High-temperature resistant bearings
- Pure copper motor windings
- Double end mechanical seal
- With optional electric float switch
Motor
Single Phase: 220~240V/50Hz
Motors of other voltages are available upon request.
With thermal protector
Insulation Class: F
Product Parameters
| MODEL | POWER | MAX. FLOW (m³/h) |
MAX. HEAD (m) |
SPEED (rpm) |
INLET OUTLET |
|
| (kW) | (HP) | |||||
| QCK45M(A) | 0.25 | 0 | 9 | 8 | 2900 | G1 or G1.25 |
| QCK55(MA) | 0.37 | 1 | 13 | 11 | 2900 | G1.5 |
| QCK75(MA) | 0.55 | 1 | 15 | 14 | 2900 | G1.5 |
| QCK100(MA) | 0.75 | 1 | 17 | 15 | 2900 | G1.5 |
| OCK150(MA) | 1.1 | 2 | 18 | 18 | 2900 | G1.5 |
| QCK200(MA) | 1.5 | 2 | 20 | 19 | 2900 | G1.5 |
