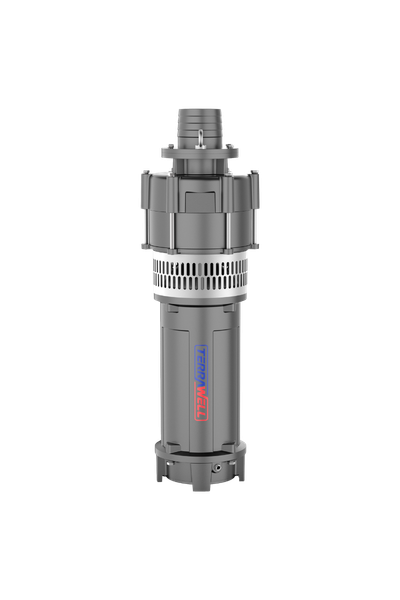

QY Oil-immersed Pump

Pump Well. Trust Swell111

Oil-immersed Pump

Backyard fish tanks

Construction sites/factories

Farmland

Greenhouses and orchards

QY series cast iron oil-immersed submersible pump with double-side mechanical seal and wide specification range delivers stable large-flow & high-lift water transfer, ideal for agricultural irrigation, municipal drainage and industrial water supply projects.

01 / 03

Working Condition

Medium Temperature

0~+40°C

Ambient Temperature

≤40°C

PH Value

6.5~8.5

Max. sand content

0.1%

Max. passed diameter

0.2mm

Protection

IP X8

Immersion depth

0.5~5m

Pump

Cast iron pump body & motor housing
Cast iron multi-stage impeller
With oil-filled motor
High-temperature resistant bearings
Pure copper motor windings
Double end mechanical seal
With optional plastic or cast iron diffuser cane

Motor

Three Phase: 380~415V/50Hz

Motors of other voltages are available upon request.

Insulation Class: F

Product Parameters

Model	Power(kW)	RATED. FLOW (m³/h)	MAX. FLOW (m³/h)	RATED. HEAD (m)	MAX. HEAD (m)	SPEED (rpm)	INLET OUTLET
50QY15-26-2.2	2.2	15	39	26	28.5	2900	2
65QY25-17-2.2	2.2	25	34	17	23	2900	2.5
80QY40-12-2.2	2.2	40	53	12	19	2900	3
100QY65-7-2.2	2.2	65	80	7	11	2900	4
150QY100-4.5-2.2	2.2	100	140	4.5	10	2900	6
50QY15-36-3	3	15	37	36	38	2900	2
50QY10-51/3-3	3	10	23	51	60	2900	2
65QY25-26-3	3	25	39	26	32	2900	2.5
65QY25-36/2-3	3	25	43	36	45	2900	2.5
80QY40-16-3	3	40	58	16	22	2900	3
100QY65-10-3	3	65	93	10	13	2900	4
150QY100-6-3	3	100	140	6	13	2900	6
150QY160-5-3	3	160	190	5	7	2900	6
50QY10-60/2-4	4	10	29	60	62	2900	2
65QY25-38/2-4	4	25	45	38	49	2900	2.5
50QY15-48/2-4	4	15	41	48	52	2900	2
50QY10-72/4-4	4	10	22	72	81	2900	2
65QY30-32-4	4	30	55	32	34	2900	2.5
80QY40-24-4	4	40	54	24	27	2900	3
150QY160-6-4	4	160	210	6	12	2900	6
200QY200-4-4	4	200	230	4	11	2900	8
100QY65-14-4	4	65	103	14	19	2900	4
150QY100-9-4	4	100	150	9	13	2900	6
50QY10-83/3-5.5	5.5	10	21	83	92	2900	2
65QY15-68/4-5.5	5.5	15	30	68	88	2900	2.5
65QY25-40-5.5	5.5	25	66	40	43	2900	2.5
80QY40-30-5.5	5.5	40	82	30	34	2900	3
100QY65-18-5.5	5.5	65	115	18	24	2900	4
150QY200-8-5.5	5.5	200	220	8	15	2900	6
200QY260-6-5.5	5.5	260	300	6	17	2900	8
50QY10-110/4-7.5	7.5	10	18	110	125	2900	2
65QY18-84/4-7.5	7.5	18	39	84	103	2900	2.5
65QY15-95/4-7.5	7.5	15	39	95	103	2900	2.5
65QY25-60/2-7.5	7.5	25	56	60	67	2900	2.5
65QY25-50-7.5	7.5	25	65	50	53	2900	2.5
80QY40-40-7.5	7.5	40	85	40	44	2900	3
100QY80-20-7.5	7.5	80	115	20	27	2900	4
100QY65-25-7.5	7.5	65	90	25	33	2900	4
150QY200-12-7.5	7.5	200	260	12	18	2900	6
200QY220-9-7.5	7.5	220	285	9	18	2900	8
200QY260-8-7.5	7.5	260	305	8	14	2900	8
50QY10-165/6-11	11	10	22	165	185	2900	2
50QY15-135/5-11	11	15	22	135	156	2900	2
65QY18-126/6-11	11	18	36	126	147	2900	2.5
65QY25-90/3-11	11	25	60	90	98	2900	2.5
80QY40-58/2-11	11	40	82	58	67	2900	3
100QY65-42/2-11	11	65	92	42	56	2900	4
100QY100-25-11	11	100	133	25	40	2900	4
150QY160-15-11	11	160	225	15	23	2900	6
200QY350-7-11	11	350	400	7	22	2900	10
250QY450-6-11	11	450	530	6	17	2900	10
300QY550-6-11	11	550	570	6	17	2900	10
65QY25-120/4-15	15	25	55	120	135	2900	2.5
80QY40-84/3-15	15	40	75	84	98	2900	3
100QY65-60/3-15	15	65	90	60	80	2900	4
100QY100-36-15	15	100	138	36	42	2900	4
150QY160-23-15	15	160	240	23	38	2900	6
200QY250-14-15	15	250	350	14	32	2900	8
100QY65-69/3-18.5	18.5	65	92	69	87	2900	4
100QY80-50-18.5	18.5	80	145	50	51	2900	4
150QY160-28-18.5	18.5	160	240	28	42	2900	6
200QY250-18-18.5	18.5	250	370	18	34	2900	8
100QY65-84/3-22	22	65	95	84	97	2900	4
150QY200-26-22	22	200	350	26	40	2900	6
200QY250-22-22	22	250	370	22	40	2900	8
