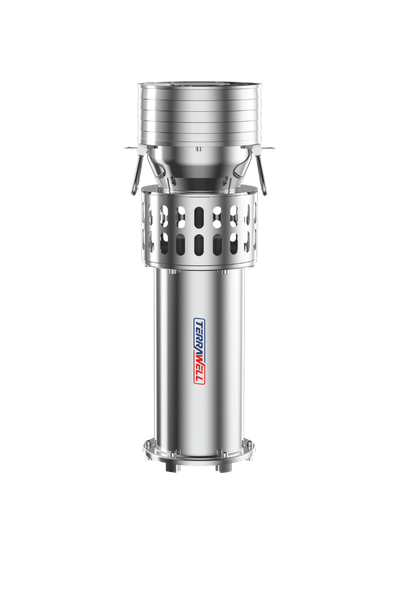

QY/S
Stainless Steel Oil-immersed Pump
Backyard fish tanks
Construction sites/factories
Farmland
Greenhouses and orchards
QY/S stainless steel oil-immersed submersible pump with IPX8 waterproof grade and double mechanical seal features large flow, good heat dissipation and corrosion resistance, ideal for agricultural irrigation, domestic water supply and industrial large-volume water transfer.
01
/
03
Working Condition
Medium Temperature
0~+40°C
Ambient Temperature
≤40°C
PH Value
6.5~8.5
Max. sand content
0.1%
Max. passed diameter
0.2mm
Protection
IP X8
Immersion depth
0.5~5m
Pump
- Cast iron pump body
- S.S.201 motor housing
- Cast iron multi-stage impeller
- With oil-filled motor
- High-temperature resistant bearings
- Pure copper motor windings
- Double end mechanical seal
Motor
Single Phase: 220~240V/50Hz
Three Phase: 380~415V/50Hz
Motors of other voltages are available upon request.
Single phase with thermal protector
Insulation Class: F
Product Parameters
| Model | Power (kW) |
RATED. FLOW (m³/h) |
MAX. FLOW (m³/h) |
RATED. HEAD (m) |
MAX. HEAD (m) |
SPEED (rpm) |
INLET OUTLET |
| 100QY65-10-3.5S | 3.5 | 65 | 98 | 10 | 14 | 2900 | 4 |
| 150QY160-5-3.5S | 3.5 | 160 | 160 | 5 | 7 | 2900 | 6 |
| 100QY65-14-4.5S | 4.5 | 65 | 103 | 14 | 15 | 2900 | 4 |
| 150QY100-9-4.5S | 4.5 | 100 | 202 | 9 | 11 | 2900 | 6 |
| 150QY160-6-4.5S | 4.5 | 160 | 220 | 6 | 8 | 2900 | 6 |
| 150QY200-6-5.5S | 5.5 | 200 | 225 | 6 | 9 | 2900 | 6 |
| 150QY160-10-5.5S | 5.5 | 160 | 210 | 10 | 15 | 2900 | 6 |
| 200QY250-5-5.5S | 5.5 | 250 | 260 | 5 | 11 | 2900 | 8 |
| 150QY200-8-7.5S | 7.5 | 200 | 270 | 8 | 11 | 2900 | 6 |
| 200QY250-7-7.5S | 7.5 | 250 | 300 | 7 | 15 | 2900 | 8 |
