Deep-well Pump
Construction sites/factories Construction sites/factories
Farmland Farmland
Greenhouses and orchards Greenhouses and orchards
Livestock farming Livestock farming

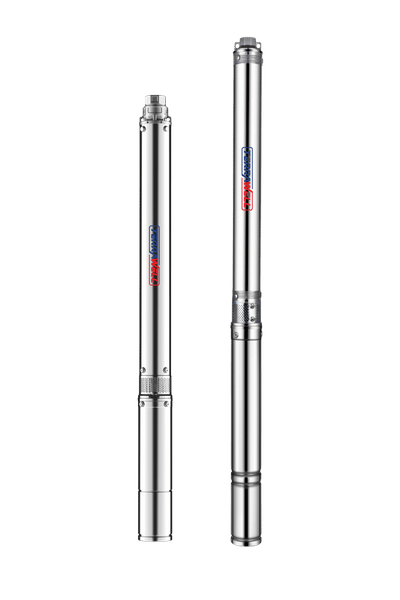

Y series stainless steel deep well submersible pump with IP68 waterproof protection and rewound F-class motor is a reliable choice for domestic deep well water supply, farmland irrigation and clean water extraction projects.
Y
01 / 03
Working Condition
Medium Temperature
0~+35°C
Ambient Temperature
≤40°C
Protection
IP68
Max. immersion depth
100~120m
Maximum allowable sand content
0.25%
Pump
  • S.S. pump body
  • S.S. outlet, optional cast iron outlet
  • With oil-filled motor
  • Plastic multi-stage impeller
  • Separeted motor structure
Motor

Single Phase: 220~240V/50Hz/60Hz

Three Phase: 380~415V/50Hz/60Hz

Motors of other voltages are available upon request.

Optional with thermal protector

Insulation Class: F

Product Parameters
MODEL VOLTAGE POWER OUTLET DIAMETER FLOW 0 0.12 0.24 0.36 0.48 0.6 0.70 0.84 0.96 PUMP BODY MOTOR TOTAL
(V) (kW) (mm) (mm) (mm) (mm)
Y50QJD0.7-18/26-0.18(S) 220 0.18 0.6” 54 HEAD (mm) 30 29 27 25 23 21 18 14 8 824 530 1280
Y50QJD0.7-22/32-0.25(S) 220 0.25 0.6" 54 38 36 34 31 29 26 22 17 10 966 565 1460
Y50QJD0.7-26/38-0.37(S) 220 0.37 0.6" 54 45 43 40 37 34 31 26 20 12 1130 590 1640

MODEL VOLTAGE POWER OUTLET DIAMETER FLOW 0 0.3 0.6 0.9 1.2 1.5 1.8 2.1 2.4 PUMP BODY MOTOR TOTAL
(V) (kW) (mm) (mm) (mm) (mm)
Y62QJD1.5-20/12-0.18(5) 220 0.18 1.0" 67 HEAD (mm) 33 30 28 26 23 20 18 12 6 449 295 744
Y62QJD1.5-30/17-0.25(S) 220 0.25 1.0" 67 46 42 39 37 33 30 24 18 8 485 320 805
Y62QJD1.5-41/24-0.37(S) 220 0.37 1.0" 67 65 60 56 52 46 41 34 22 10 648 366 1014
Y62QJD1.5-52/31-0.55(S) 220 0.55 1.0" 67 84 77 72 67 60 52 44 30 14 788 416 1204
Y62QJD1.5-68/40-0.75(S) 220 0.75 1.0" 67 106 100 92 84 76 68 56 40 18 1036 481 1517
Y62QJD1.5-82/48-1.1(S) 220 1.1 1.0" 67 126 120 112 104 92 82 66 48 22 1256 597 1853

MODEL VOLTAGE POWER OUTLET DIAMETER FLOW 0 0.5 1.0 1.5 2.0 2.5 3.0 3.5 PUMP BODY MOTOR TOTAL
(V) (kW) (mm) (mm) (mm) (mm)
Y75QJD1.5-36/11-0.25(S) 220 0.25 1.0" 75 HEAD (mm) 45 42 40 36 32 23 14 3 635 215 850
Y75QJD1.5-50/15-0.37(5) 220 0.37 1.0" 75 62 59 56 50 45 33 20 3 725 245 970
Y75QJD1.5-65/20-0.55(5) 220 0.55 1.0" 75 81 77 73 65 55 40 21 4 855 285 1140
Y75QJD1.5-85/26-0.75(5) 220 0.75 1.0" 75 107 102 95 85 75 55 30 12 1035 325 1360
Y75QJD1.5-118/36-1.1(5) 220 1.1 1.0" 75 145 140 131 118 100 118 40 14 1310 400 1710
Y75QJD1.5-160/45-1.5(S) 220 1.5 1.0" 75 191 183 172 160 136 104 59 16 1525 475 2000

MODEL VOLTAGE POWER OUTLET DIAMETER FLOW 0 0.6 9 1.2 1.5 1.8 2.0 2.4 3.0 3.3 4.0 PUMP BODY MOTOR TOTAL
(V) (kW) (mm) (mm) (mm) (mm)
Y75QJD2-25/8-0.25(S) 220 0.25 1.0" 75 HEAD (mm) 32 31 30 29 28 26 25 22 16 12 3 351 215 800
Y75QJD2-35/11-0.37(5) 220 0.37 1.0" 75 44 43 42 40 38 36 35 30 25 17 4 665 245 910
Y75QJD2-48/16-0.55(S) 220 0.55 1.0" 75 63 62 60 57 55 50 48 45 30 25 4 805 285 1090
Y75QJD2-65/21-0.75(S) 220 0.75 1.0" 75 83 81 79 76 72 68 65 58 42 30 4 985 325 1310
Y75QJD2-92/30-1.1(S) 220 1.1 1.0" 75 120 117 115 110 108 100 92 85 60 45 4 1270 400 1670
Y75QJD2-112/37-1.5(S) 220 1.5 1.0" 75 145 139 137 132 126 118 112 100 68 50 4 1465 475 1940

MODEL VOLTAGE POWER OUTLET DIAMETER FLOW 0 1 2 3 4 5 PUMP BODY MOTOR TOTAL
(V) (kW) (mm) (mm) (mm) (mm)
Y80QJD2-42/9-0.4(S) 220/380 0.4 1.0” 88 HEAD (mm) 51 47 42 36 25 6 455 375 830
Y80QJD2-56/11-0.6(S) 220/380 0.6 1.0" 88 63 61 56 49 34 7 505 385 890
Y80QJD2-65/13-0.8(S) 220/380 0.8 1.0" 88 74 71 65 55 38 8 560 400 960
Y80QJD2-78/16-0.9(S) 220/380 0.9 1.0" 88 90 86 78 68 47 10 625 415 1040
Y80QJD2-88/18-1.1(S) 220/380 1.1 1.0" 88 102 97 88 76 53 12 685 435 1120
Y80QJD2-110/22-1.5(S) 220/380 1.5 1.0" 88 125 119 110 95 66 13 795 485 1280
Y80QJD2-128/26-1.8(S) 220/380 1.8 1.0" 88 148 141 128 109 75 15 900 510 1410

MODEL VOLTAGE POWER OUTLET DIAMETER FLOW 0 1 2 3 4 5 6 PUMP BODY MOTOR TOTAL
(V) (kW) (mm) (mm) (mm) (mm)
Y80QJD3-38/8-0.4(S) 220/380 0.4 1.0” 88 HEAD (mm) 46 44 42 38 34 26 12 545 375 920
Y80QJD3-46/10-0.6(S) 220/380 0.6 1.0" 88 54 52 50 46 41 31 13 625 385 1010
Y80QJD3-55/12-0.8(S) 220/380 0.8 1.0" 88 66 63 60 55 48 36 16 711 400 1111
Y80QJD3-65/14-0.9(S) 220/380 0.9 1.0" 88 80 76 72 65 56 41 18 785 415 1200
Y80QJD3-75/16-1.1(S) 220/380 1.1 1.0" 88 89 86 82 75 66 50 21 865 435 1300
Y80QJD3-101/20-1.5(S) 220/380 1.5 1.0" 88 115 113 108 101 89 66 26 1105 485 1590
Y80QJD3-113/23-1.8(S) 220/380 1.8 1.0" 88 130 128 122 113 100 76 35 1180 510 1690

MODEL VOLTAGE POWER OUTLET DIAMETER FLOW 0 1 2 3 4 5 6 PUMP BODY MOTOR TOTAL
(V) (kW) (mm) (mm) (mm) (mm)
Y90QJD2-35/7-0.37(S) 220/380 0.37 1.0" 100 HEAD (mm) 46 43 35 31 23 12 5 377 383 760
Y90QJD2-50/9-0.55(S) 220/380 0.55 1.0" 100 60 56 50 43 36 26 13 427 398 825
Y90QJD2-60/11-0.75(S) 220/380 0.75 1.0" 100 72 68 60 58 48 37 22 478 418 896
Y90QJD2-90/16-1.1(S) 220/380 1.1 1.0" 100 104 99 90 84 70 54 31 604 458 1062
Y90QJD2-125/20-1.5(S) 220/380 1.5 1.0" 100 135 130 125 108 90 67 39 705 507 1212
Y90QJD2-140/23-1.8(S) 220/380 1.8 1.0” 100 150 143 140 121 101 77 45 781 532 1313
Y90QJD2-160/26-2.2(S) 220/380 2.2 1.0" 100 200 181 160 138 112 85 51 857 567 1424

MODEL VOLTAGE POWER OUTLET DIAMETER FLOW 0 1 2 3 4 5 6 7 8 9 PUMP BODY MOTOR TOTAL
(V) (kW) (mm) (mm) (mm) (mm)
Y90QJD4-25/5-0.37(5) 220/380 0.37 1.5" 100 HEAD (mm) 30 29 27 26 25 20 17 14 10 5 364 383 747
Y90QJD4-35/7-0.55(S) 220/380 0.55 1.5" 100 42 40 38 36 35 29 24 20 14 7 430 398 828
Y90QJD4-45/9-0.75(S) 220/380 0.75 1.5" 100 54 51 49 46 45 37 31 25 18 9 496 410 914
Y90QJD4-58/12-1.1(5) 220/380 1.1 1.5" 100 71 68 65 61 58 49 42 34 23 12 594 458 1052
Y90QJD4-77/16-1.5(S) 220/380 1.5 1.5" 100 95 91 86 82 77 65 55 45 31 16 726 507 1233
Y90QJD4-85/18-1.8(5) 220/380 1.8 1.5" 100 107 103 97 92 85 73 62 50 35 18 791 532 1323
Y90QJD4-100/20-2.2(S) 220/380 2.2 1.5" 100 130 117 113 108 100 82 74 56 39 20 857 567 1424

MODEL VOLTAGE POWER OUTLET DIAMETER FLOW 0 2 3 4 5 6 7 8 9 10 11 12 PUMP BODY MOTOR TOTAL
(V) (kW) (mm) (mm) (mm) (mm)
Y90QJD6-30/6-0.75(S) 220/380 0.75 1.5" 100 HEAD (mm) 37 36 35 34 32 30 29 26 23 19 15 10 397 418 815
Y90QJD6-40/8-1.1(S) 220/380 1.1 1.5" 100 50 48 47 45 42 40 38 34 30 25 20 14 463 458 921
Y90QJD6-50/10-1.5(S) 220/380 1.5 1.5" 100 62 60 59 57 53 50 48 43 38 32 25 17 529 507 1036
Y90QJD6-56/12-1.8(S) 220/380 1.8 1.5" 100 68 66 65 62 59 56 52 47 42 35 28 19 594 532 1126
Y90QJD6-70/14-2.2(S) 220/380 2.2 1.5" 100 81 78 76 73 69 70 62 56 49 41 33 22 660 567 1227

MODEL VOLTAGE POWER OUTLET DIAMETER FLOW 0 2 4 6 8 10 12 14 16 PUMP BODY MOTOR TOTAL
(V) (kW) (mm) (mm) (mm) (mm)
Y90QJD8-18/4-0.75(S) 220/380 0.75 2.0" 100 HEAD (mm) 25 23 22 20 18 15 12 8 3 387 418 805
Y90QJD8-27/6-1.1(S) 220/380 1.1 2.0" 100 38 35 34 31 27 23 19 12 5 462 458 920
Y90QJD8-38/8-1.5(S) 220/380 1.5 2.0" 100 50 46 45 41 38 31 25 16 6 536 507 1043
Y90QJD8-53/10-1.8(5) 220/380 1.8 2.0" 100 63 58 56 55 53 50 43 30 12 611 532 1143
Y90QJD8-63/12-2.2(S) 220/380 2.2 2.0" 100 75 69 67 65 63 58 48 30 12 686 567 1253

MODEL VOLTAGE POWER OUTLET DIAMETER FLOW 0 8 10 12 14 15.5 PUMP BODY MOTOR TOTAL
(V) (kW) (mm) (mm) (mm) (mm)
Y90QJD10-22/5-1.1(S) 220/380 1.1 2.0” 100 HEAD (mm) 30 25 22 19 16 14 477 458 935
Y90QJD10-30/7-1.5(S) 220/380 1.5 2.0" 100 40 33 30 26 21 16 572 507 1079
Y90QJD10-35/8-1.8(S) 220/380 1.8 2.0" 100 45 38 35 30 24 19 620 532 1152
Y90QJD10-40/10-2.2(S) 220/380 2.2 2.0" 100 50 45 40 35 28 25 716 567 1283

MODEL VOLTAGE POWER OUTLET DIAMETER FLOW 0 8 10 12 15 16 18 20 22 PUMP BODY MOTOR TOTAL
(V) (kW) (mm) (mm) (mm) (mm)
Y90QJD15-21/6-1.5(S) 220/380 1.5 2.0” 100 HEAD (mm) 35 28 25 23 21 19 16 13 10 654 507 1161
Y90QJD15-25/7-1.8(S) 220/380 1.8 2.0" 100 40 33 29 27 25 22 19 16 12 723 532 1255
Y90QJD15-32/9-2.2(S) 220/380 2.2 2.0" 100 50 42 38 35 32 29 24 20 15 862 567 1429
