Pump Well. Trust Swell111

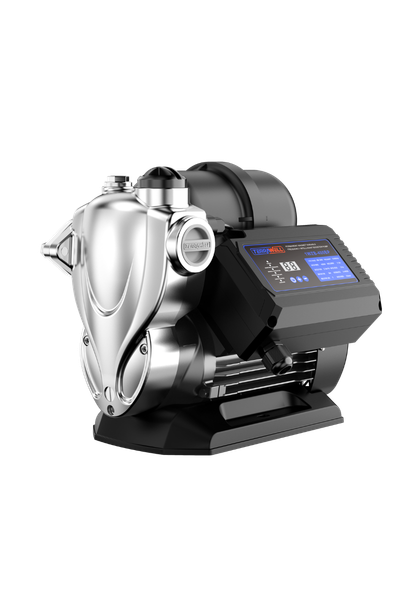

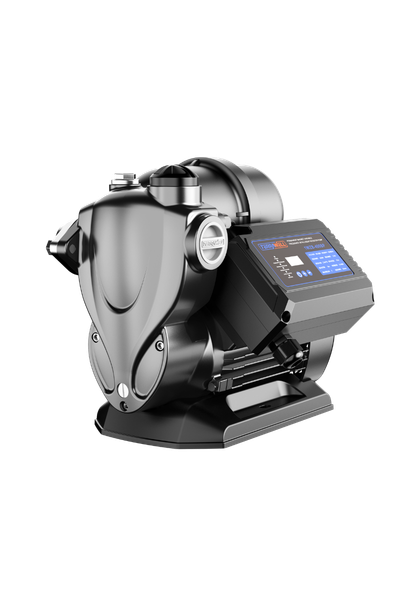

1WZB/BP
Permanent Magnet Variable Frequency Self-Priming Pump
Domestic Water Supply
Commercial buildings
Farmland
Greenhouses and orchards
HVAC
1WZB/BP or BPS is an intelligent self-priming water pump adopts energy-saving permanent magnet variable frequency motor, equipped with multifunctional frequency conversion control panel with constant pressure regulation. The pump body of 1WZB/BP is cast iron with anti-rust electrophoretic treatment, meanwhile, 1WZB/BPS's pump body is stainless steel. They are widely used in household water supply, booster circulation and small industrial water transfer.
01
/
03
Working Condition
Medium temperature
0~+80°C
Ambient temperature
≤40°C
Protection
IPX4
Product Features
- Variable frequency voltage control
- Constant pressure delivery
- High and low temperature protection
- Fault diagostics with alert
- Low noise
- Effcient performance
- With check valve
Motor
Permanent magnet motor
Single Phase: 180～230V 50Hz/60Hz
Insulation Class: F
Product Parameters
| MODEL | POWER | MAX.HEAD (m) | MAX.FLOW (L/min) | MAX SUCTION (m) |
SPEED rpm |
INLET OUTLET | |
| (kW) | (HP) | ||||||
| 1WZB400BP | 0.4 | 0.55 | 40 | 50 | 9 | 3800 | 1"*1” |
| 1WZB800BP | 0.8 | 1.1 | 46 | 60 | 9 | 3800 | 1*1" |
