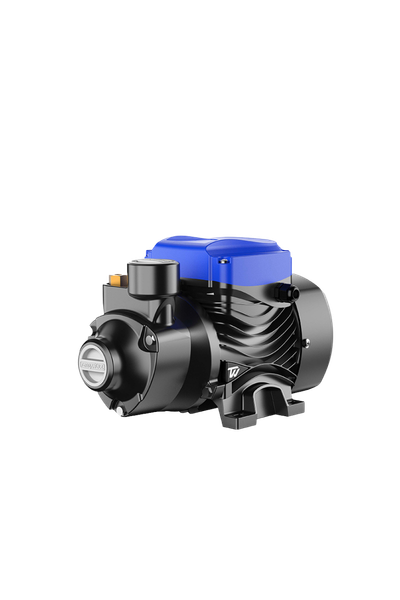

QV
Peripheral Pump
Domestic Water Supply
Commercial buildings
HVAC
QV is peripheral pump with high suction capability (Max. suction lift of 8 meters). It is widely used for household water boosting, small agricultural irrigation and general water circulation.
01
/
03
Working Condition
Medium temperature
0~+60°C
Ambient temperature
≤40°C
Protection
IPX4
Product Features
- Low noise
- High suction with 8m
- With high head
- Brass impeller
- AISI304 S.S. welding shaft
- Pure copper winding
Motor
Single Phase: 180～230V 50Hz/60Hz
With thermal protector
Insulation Class: F
Product Parameters
| MODEL | POWER | MAX.HEAD (m) | MAX.FLOW (L/min) | MAX SUCTION (m) |
SPEED rpm |
INLET OUTLET | |
| (kW) | (HP) | ||||||
| QV60-1 | 0.37 | 0.5 | 40 | 40 | 8 | 2900 | 1"*1" |
| QV70-1 | 0.6 | 0.8 | 55 | 50 | 8 | 2900 | 1"*1" |
| QV80-1 | 0.75 | 1 | 70 | 60 | 8 | 2900 | 1"*1" |
