Pump Well. Trust Swell111
MKSm
Self-priming Peripheral Pump
Domestic Water Supply
Commercial buildings
Farmland
Greenhouses and orchards

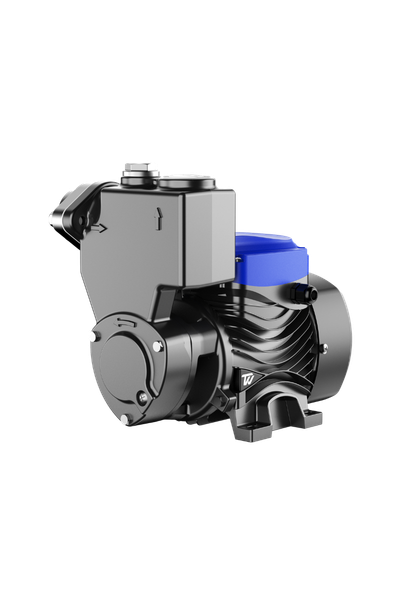

MKSm is a self-priming peripheral pump.This pump can transfer liquid with a maximum suction lift of 9 meters, featuring strong self-priming capability. The inlet with diamond flange connection. It is widely used for household water boosting, well water pumping, small agricultural irrigation and domestic water circulation.
01
/
03
Working Condition
Medium temperature
0~+60°C
Ambient temperature
≤40°C
Protection
IPX4
Product Features
- Brass Peripheral impeller
- High suction with 9m
- With check valve
- Inlet with diamond flange connection
- With S.S. insert
- Brass impeller
- AISI304 S.S. welding shaft
- Pure copper winding
Motor
Single Phase: 180～230V 50Hz/60Hz
Single phase with thermal protector
Motors of other voltages are available upon request.
Insulation Class: F
Product Parameters
| MODEL | POWER | MAX.HEAD (m) | MAX.FLOW (L/min) | MAX SUCTION (m) |
SPEED rpm |
INLET OUTLET | |
| (kW) | (HP) | ||||||
| MKSm60-1 | 0.37 | 0.5 | 36 | 40 | 9 | 2900 | 1"*1" |
| MKSm70-1 | 0.60 | 0·8 | 60 | 50 | 9 | 2900 | 1"*1" |
| MKSm80-1 | 0.75 | 1·0 | 70 | 60 | 9 | 2900 | 1"*1" |
