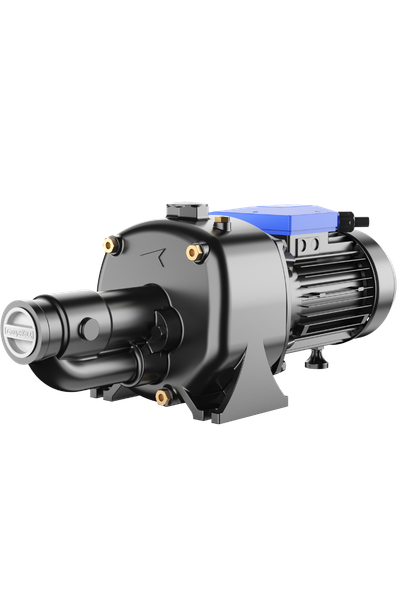

CAB JET Pump

Pump Well. Trust Swell111

CAB

JET Pump

Domestic Water Supply

Commercial buildings

Construction sites/factories

Farmland

Greenhouses and orchards

CAB series heavy-duty self-priming jet pump adopts cast iron pump body with anti-rust treatment and brass impeller. If the outside ejector places under water, the pump would have ultra-high maximum suction lift of 25 meters, fast self-priming speed. It is widely used for deep shallow well water extraction, farmland irrigation, large-scale domestic water supply and water pressurization for villas.

01 / 03

Working Condition

Medium temperature

0~+60°C

Ambient temperature

≤40°C

Protection

IPX4

Pump

Electrophoretic for cast iron pump body
S.S./Brass impeller
Two-stage impellers
Pure copper winding
With ejector
High suction with 25m (if the ejector places under water)

Motor

Single Phase: 180～230V 50Hz/60Hz

Three Phase: 340～410V 50Hz/60Hz

Motors of other voltages are available upon request.

Single phase with thermal protector

Insulation Class: F

Product Parameters

MODEL	POWER		MAX.HEAD (m)	MAX.FLOW (L/min)	MAX SUCTION (m)	SPEED rpm	INLET OUTLET
MODEL	(kW)	(HP)	MAX.HEAD (m)	MAX.FLOW (L/min)	MAX SUCTION (m)	SPEED rpm	INLET OUTLET
CAB150	1.1	1.5	58	90	25	2900	1.5"*1"
CAB200	1.5	2	62	110	25	2900	1.5"*1"
CAB300	2.2	3	64.5	140	25	2900	1.5"*1"
