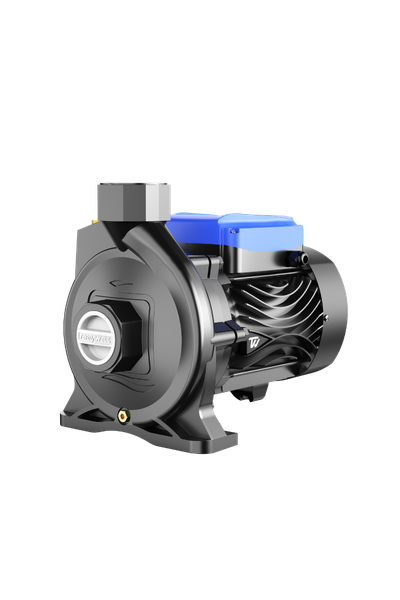

AMCm Centrifugal Pump

Pump Well. Trust Swell111

AMCm

Centrifugal Pump

Domestic Water Supply

Commercial buildings

Farmland

Greenhouses and orchards

AMCm is centrifugal pump is ideal for clean‑water and non‑aggressive media harmless to pump components. Dependable and simple‑to‑operate, the pumps fit household and civilian‑grade work: water supply for medium‑small pressure systems, liquid conveyance and plot irrigation.

01 / 03

Working Condition

Medium temperature

0~+60°C

Ambient temperature

≤40°C

Protection

IPX4

Pump

Electrophoretic for cast iron pump body
PPO/S.S./Brass impeller
AISI304 S.S. welding shaft
Pure copper winding

Motor

Single Phase: 180～230V 50Hz/60Hz

Three Phase: 340～410V 50Hz/60Hz

Motors of other voltages are available upon request.

Single phase with thermal protector

Insulation Class: F

Product Parameters

MODEL	POWER		MAX.HEAD (m)	MAX.FLOW (L/min)	MAX SUCTION (m)	SPEED rpm	INLET OUTLET
MODEL	(kW)	(HP)	MAX.HEAD (m)	MAX.FLOW (L/min)	MAX SUCTION (m)	SPEED rpm	INLET OUTLET
AMCm180/2	2.2	3	30	420	8	2900	2"*2"
AMCm220/2	2.2	3	28	500	8	2900	2"*2"
AMCm300/2	3	4	33	550	8	2900	2"*2"
AMCm400/2	4	5	36	635	8	2900	2"*2"
AMC500/2	5.5	7.5	42	670	8	2900	2"*2"
AMC600/2	7.5	10	45	700	8	2900	2"*2"
