Pump Well. Trust Swell111
MB
Centrifugal Pump
Domestic Water Supply
Commercial buildings
Farmland
Greenhouses and orchards

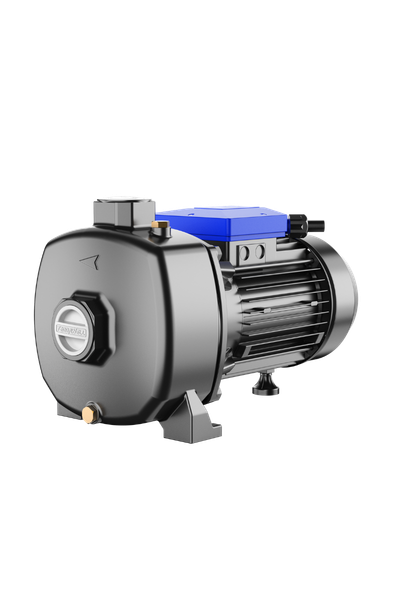

MB is centrifugal pump are with two-stage impellers. With robust cast iron structure, reliable sealing performance and high-efficiency full-copper motor, the pump can stably deliver clean water and water-similar liquids for long-term continuous operation.
01
/
03
Working Condition
Medium temperature
0~+60°C
Ambient temperature
≤40°C
Protection
IPX4
Pump
- Electrophoretic for cast iron pump body
- S.S./Brass impeller
- Two-stage impellers
- AISI304 S.S. welding shaft
- Pure copper winding
Motor
Single Phase: 180～230V 50Hz/60Hz
Three Phase: 340～410V 50Hz/60Hz
Motors of other voltages are available upon request.
Single phase with thermal protector
Insulation Class: F
Product Parameters
| MODEL | POWER | MAX.HEAD (m) | MAX.FLOW (L/min) | MAX SUCTION (m) |
SPEED rpm | INLET OUTLET |
|
| (kW) | (HP) | ||||||
| MB150 | 1.1 | 1.5 | 38 | 160 | 8 | 2900 | 1.5"*1.25" |
| MB200 | 1.5 | 2 | 42 | 170 | 8 | 2900 | 1.5"*1.25" |
| MB300 | 2.2 | 3 | 46 | 180 | 8 | 2900 | 1.5"*1.25" |
