Pump Well. Trust Swell111

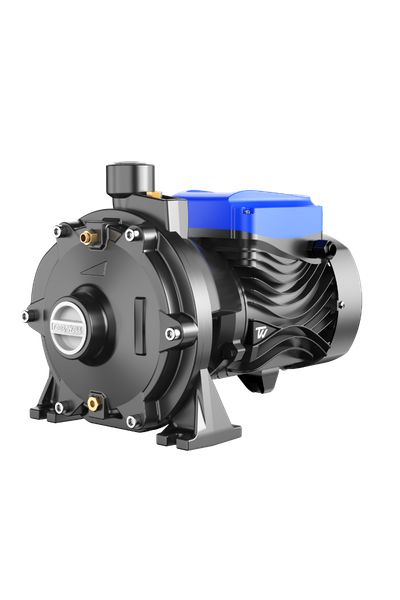

2MCm
Centrifugal Pump
Domestic Water Supply
Commercial buildings
Farmland
Greenhouses and orchards
2MCm series horizontal centrifugal pumps is with 2-stage impellers. Suitable for clean water and non‑aggressive liquids harmless to pump components. Renowned for solid reliability and simple operation, this pump serves household and civil‑use tasks, including water supply for small‑to‑medium pressure units, liquid transport and farm‑plot irrigation.
01
/
03
Working Condition
Medium temperature
0~+60°C
Ambient temperature
≤40°C
Protection
IPX4
Pump
- Electrophoretic for cast iron pump body
- S.S./Brass impeller
- Two-stage impellers
- AISI304 S.S. welding shaft
- Pure copper winding
Motor
Single Phase: 180～230V 50Hz/60Hz
Three Phase: 340～410V 50Hz/60Hz
Motors of other voltages are available upon request.
Single phase with thermal protector
Insulation Class: F
Product Parameters
| MODEL | POWER | MAX.HEAD (m) | MAX.FLOW (L/min) | MAX SUCTION (m) |
SPEED rpm | INLET OUTLET |
|
| (kW) | (HP) | ||||||
| 2MCm25/135 | 1.1 | 1.5 | 45 | 160 | 8 | 2900 | 1.5"*1" |
| 2MCm25/140M | 1.5 | 2 | 48 | 180 | 8 | 2900 | 1.5"*1" |
| 2MCm160/160 | 1.5 | 2 | 52 | 140 | 8 | 2900 | 1.25"*1" |
| 2MCm25/160B | 1.5 | 2 | 52 | 150 | 8 | 2900 | 1.5"*1" |
| 2MCm32/160B | 1.5 | 2 | 52 | 160 | 8 | 2900 | 1.5"*1.25" |
| 2MCm32/160 | 1.5 | 2 | 52 | 144 | 8 | 2900 | 1.25"*1.25" |
| 2MCm25/160A | 2.2 | 3 | 60 | 170 | 8 | 2900 | 1.5"*1" |
| 2MCm32/160A | 2.2 | 3 | 60 | 180 | 8 | 2900 | 1.5"*1.25" |
| 2MCm40/160A | 2.2 | 3 | 60 | 190 | 8 | 2900 | 2"*1.5" |
| 2MCm25/200C | 3.0 | 4 | 70 | 170 | 8 | 2900 | 1.5"*1" |
| 2MCm32/200C | 3.0 | 4 | 70 | 180 | 8 | 2900 | 1.5"*1.25" |
| 2MCm40/200C | 3.0 | 4 | 70 | 190 | 8 | 2900 | 2"*1.5" |
