Pump Well. Trust Swell111

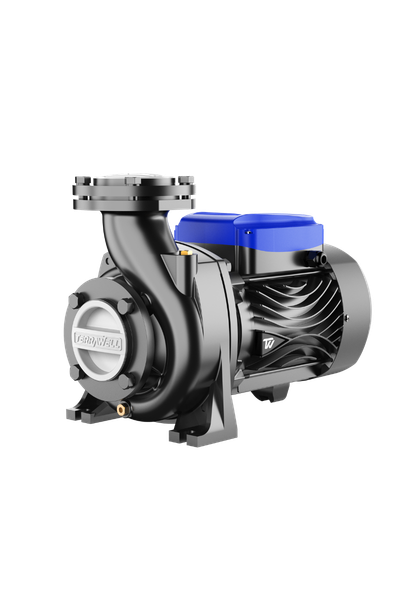

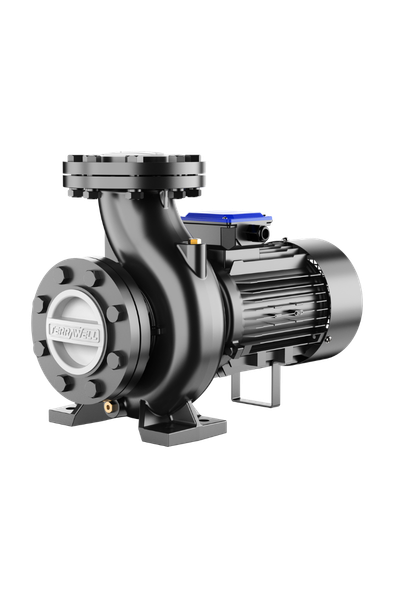

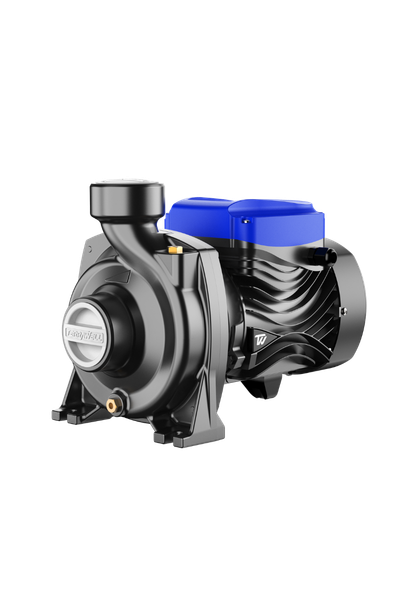

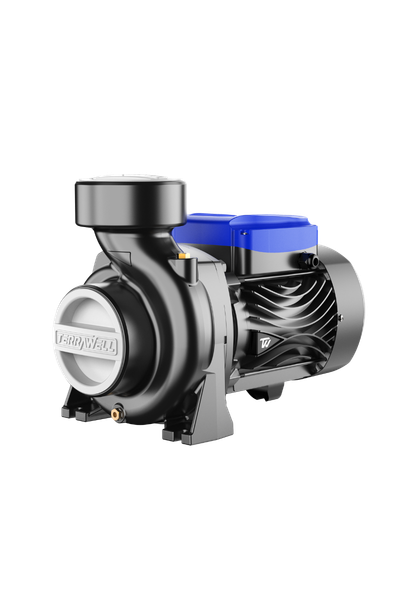

MHm
Centrifugal Pump
Domestic Water Supply
Commercial buildings
Farmland
Greenhouses and orchards
MHm large-flow horizontal centrifugal pumps are widely used for residential water pressurization, industrial water circulation, agricultural irrigation, and other medium-large flow clean water transfer scenarios.
01
/
03
Working Condition
Medium temperature
0~+60°C
Ambient temperature
≤40°C
Protection
IPX4
Pump
- Electrophoretic for cast iron pump body
- S.S./Brass impeller
- AISI304 S.S. welding shaft
- Pure copper winding
Motor
Single Phase: 180～230V 50Hz/60Hz
Three Phase: 340～410V 50Hz/60Hz
Motors of other voltages are available upon request.
Single phase with thermal protector
Insulation Class: F
Product Parameters
| MODEL | POWER | MAX.HEAD (m) | MAX.FLOW (L/min) | MAX SUCTION (m) |
SPEED rpm | INLET OUTLET |
|
| (kW) | (HP) | ||||||
| MHm/5C | 0.6 | 0.8 | 12.5 | 460 | 8 | 2900 | 2"*2" |
| MHm/5B | 0.75 | 1 | 14.5 | 480 | 8 | 2900 | 2"*2" |
| MHm/5A | 1.1 | 1.5 | 15.5 | 480 | 8 | 2900 | 2"*2" |
| MHm/5BM | 1.1 | 1.5 | 19 | 480 | 8 | 2900 | 2"*2" |
| MHm/5AM | 1.5 | 2 | 23 | 520 | 8 | 2900 | 2"*2" |
| MHm/6C | 1.1 | 1.5 | 14 | 850 | 8 | 2900 | 3"*3" |
| MHm/6CR | 1.1 | 1.5 | 14 | 850 | 8 | 2900 | 4"*4" |
| MHm/6B | 1.5 | 2 | 16 | 900 | 8 | 2900 | 3"*3" |
| MHm/6BR | 1.5 | 2 | 16 | 900 | 8 | 2900 | 4"*4" |
| MHm/6A | 2.2 | 3 | 16 | 1300 | 8 | 2900 | 3"*3" |
| MHm/6AR | 2.2 | 3 | 16 | 1300 | 8 | 2900 | 4"*4" |
| MHm/7B | 3.0 | 4 | 18 | 1400 | 8 | 2900 | 3"*3" |
| MHm/7BR | 3.0 | 4 | 18 | 1400 | 8 | 2900 | 4"*4" |
| MHm/6CF | 1.1 | 1.5 | 14 | 850 | 8 | 2900 | 3"*3" |
| MHm/6BF | 1.5 | 2 | 16 | 900 | 8 | 2900 | 3"*3" |
| MHm/6AF | 2.2 | 3 | 16 | 1300 | 8 | 2900 | 3"*3" |
| MHm/7BF | 3 | 4 | 18 | 1400 | 8 | 2900 | 3"*3" |
| MHm/7AR | 4 | 5.5 | 18 | 2100 | 8 | 2900 | 4"*4" |
