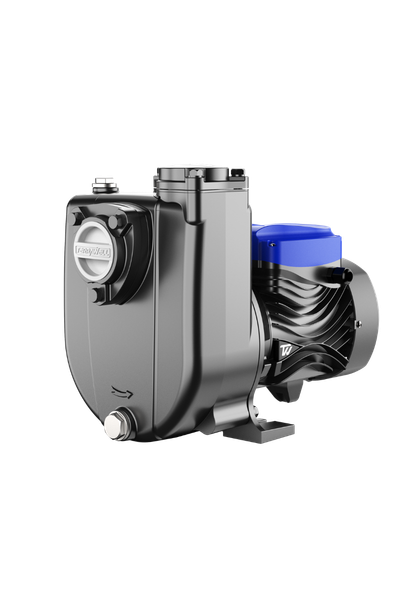

MHSm Self-priming Centrifugal Pump

Pump Well. Trust Swell111

MHSm

Self-priming Centrifugal Pump

Domestic Water Supply

Commercial buildings

Construction sites/factories

Farmland

Greenhouses and orchards

Livestock farming

MHSm self-priming centrifugal pumps feature excellent self-priming performance and large flow capacity, widely applied in rural well water extraction, residential water pressurization, garden irrigation, farm water supply and small industrial water circulation. MHSm's impeller is semi-opened, so having anti-clog protection.

01 / 03

Working Condition

Medium temperature

0~+60°C

Ambient temperature

≤40°C

Protection

IPX4

Pump

Electrophoretic for cast iron pump body
Cast iron impeller
Semi-open impeller
AISI304 S.S. welding shaft
Pure copper winding

Motor

Single Phase: 180～230V 50Hz/60Hz

Three Phase: 340～410V 50Hz/60Hz

Motors of other voltages are available upon request.

Single phase with thermal protector

Insulation Class: F

Product Parameters

MODEL	POWER		MAX.HEAD (m)	MAX.FLOW (L/min)	MAX SUCTION (m)	SPEED rpm	INLET OUTLET
MODEL	(kW)	(HP)	MAX.HEAD (m)	MAX.FLOW (L/min)	MAX SUCTION (m)	SPEED rpm	INLET OUTLET
MHSm1500	1.1	1.5	21	400	9	2900	2"*2"
MHSm2000	1.5	2	28	430	9	2900	2"*2"
MHSm2500	2.2	3	34	460	9	2900	2"*2"
