ZDK

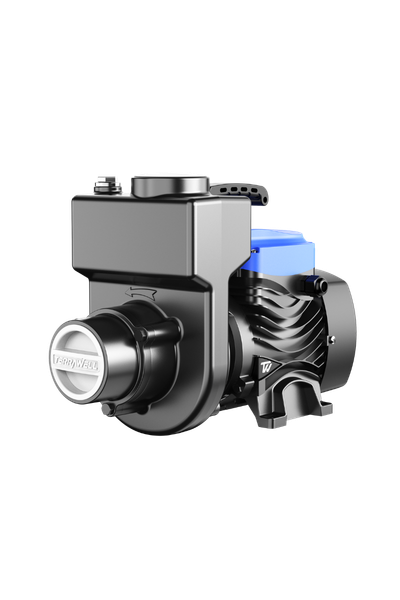

Self-priming Centrifugal Pump
Domestic Water Supply
Commercial buildings
Construction sites/factories
Farmland
Greenhouses and orchards
Livestock farming
ZDK self-priming centrifugal pumps are widely used for household water supply boosting, shallow well water extraction, garden irrigation, small farm water transportation and industrial circulating water supply. Featuring a robust electrophoretic cast iron structure and high-efficiency full-copper motor, it ensures stable, low-noise and long-term continuous operation.
01
/
03
Working Condition
Medium temperature
0~+60°C
Ambient temperature
≤40°C
Protection
IPX4
Pump
- Electrophoretic for cast iron pump body
- Brass/Cast iron impeller
- Semi-open impeller
- AISI304 S.S. welding shaft
- Pure copper winding
Motor
Single Phase: 180～230V 50Hz/60Hz
Three Phase: 340～410V 50Hz/60Hz
Motors of other voltages are available upon request.
Single phase with thermal protector
Insulation Class: F
Product Parameters
| MODEL | POWER | MAX.HEAD (m) | MAX.FLOW (L/min) | MAX SUCTION (m) |
SPEED rpm | INLET OUTLET |
|
| (kW) | (HP) | ||||||
| 1.5ZDK-20 | 0.75 | 1 | 21 | 250 | 8 | 2900 | 1.5"*1.5" |
| 2ZDK-18 | 1.1 | 1.5 | 19 | 340 | 8 | 2900 | 2"*2" |
