MHm/J Hand Well Pump

Pump Well. Trust Swell111

MHm/J

Hand Well Pump

Domestic Water Supply

Commercial buildings

Farmland

Greenhouses and orchards

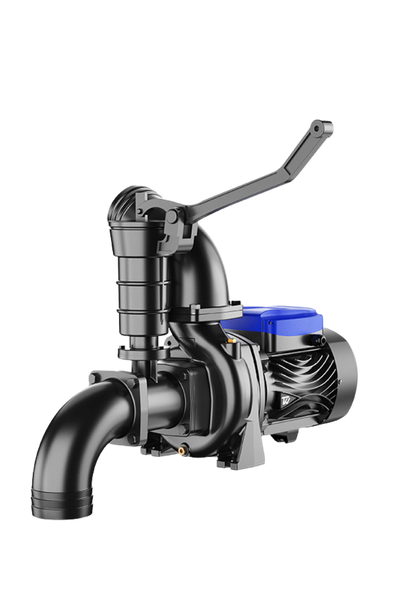

MHm/J hand well water pump adopts electric & manual dual-purpose design. It works normally by electricity under stable power supply; once power fails, users can pump water manually via the rocking handle to guarantee continuous water supply.

01 / 03

Working Condition

Medium temperature

0~+60°C

Ambient temperature

≤40°C

Protection

IPX4

Pump

Electrophoretic for cast iron pump body
S.S./Brass impeller
AISI304 S.S. welding shaft
Pure copper winding

Motor

Single Phase: 180～230V 50Hz/60Hz

Three Phase: 340～410V 50Hz/60Hz

Motors of other voltages are available upon request.

Single phase with thermal protector

Insulation Class: F

Product Parameters

MODEL	POWER		MAX.HEAD (m)	MAX.FLOW (L/min)	MAX SUCTION (m)	SPEED rpm	INLET OUTLET
MODEL	(kW)	(HP)	MAX.HEAD (m)	MAX.FLOW (L/min)	MAX SUCTION (m)	SPEED rpm	INLET OUTLET
MHm-J6CR	1.1	1.5	14	850	8	2900	4"*4"
MHm-J6BR	1.5	2	16	900	8	2900	4"*4"
MHm-J6AR	2.2	3	16	1300	8	2900	4"*4"
MHm-J7BR	3	4	18	1400	8	2900	4"*4"
